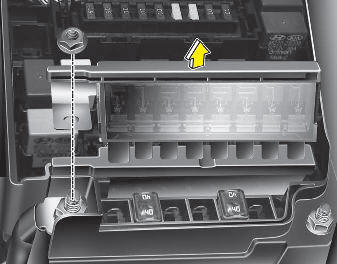

If the multi fuse is blown, it must be removed as follows:

If the multi fuse is blown, it must be removed as follows:

1. Remove the fuse panel in the engine compartment.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.

✽ NOTICE

If the main or multi fuse is blown, consult an authorized HYUNDAI dealer.
