Hyundai Elantra MD/UD: Engine compartment fuse replacement - Fuses - Maintenance - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off.

1. Turn the ignition switch and all other switches off.

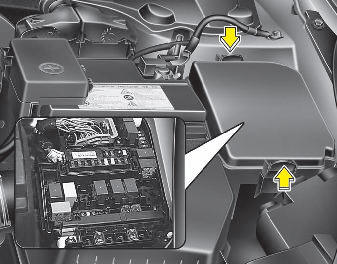

2. Remove the fuse panel cover by pressing the tab and pulling up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

After checking the fuse panel in the engine compartment, securely install the CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.

Fuse switch message
If the fuse switch is in the OFF position the message "FUSE" and "ON" blinks in turns to inform the driver to turn on the fuse switch. ...

Main fuse
If the main fuse is blown, it must be removed as follows: 1. Turn off the engine. 2. Disconnect the negative battery cable. 3. Remove the nuts shown in the picture above. 4. Replace the fuse wit ...
