A vehicles electrical system is protected from electrical overload damage by

A vehicles electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 fuse panels, one located in the drivers side panel bolster, the other in the engine compartment.

If any of your vehicles lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.

If the electrical system does not work, first check the drivers side fuse panel. Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.

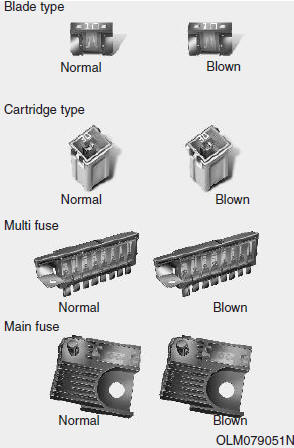

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

- Fuse replacementWARNING - Fuse replacement

  • Never replace a fuse with anything but another fuse of the same rating.
  • A higher capacity fuse could cause damage and possibly a fire.
  • Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.

Do not use a screwdriver or any other metal object to remove fuses because it CAUTION

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
