Hyundai Elantra: Main fuse - Engine compartment fuse replacement - Fuses - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Main fuse

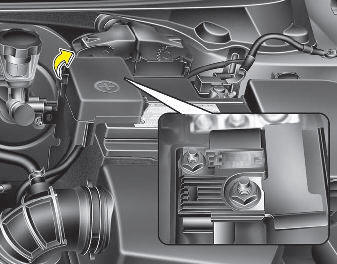

If the main fuse is blown, it must be removed as follows:

If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
