Hyundai Elantra: Using RADIO, SETUP, VOLUME and AUDIO CONTROL - Audio system - Features of your vehicle - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Using RADIO, SETUP, VOLUME and AUDIO CONTROL

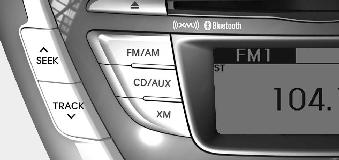

1. FM/AM Button

1. FM/AM Button

The FM/AM button toggles between FM and AM. Listed below are the paths as the system switches from FM to AM and back to FM.

FM/AM : FM1➟FM2➟AM➟FM1...

2. SEEK Button

  • When the is pressed, it will automatically tune to the next lower station.
  • When the is pressed, it will automatically tune to the next higher station.

3. PRESET Buttons

  • Press 1 ~ 6 buttons less than 0.8 seconds to play the station saved in each button.
  • Press 1 ~ 6 buttons more than 0.8 seconds or longer to save the current station to the respective button with a beep.

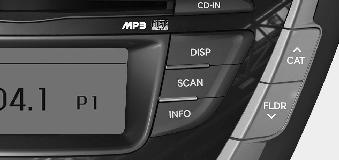

4. DISP Button

4. DISP Button

Turn the LCD Display & Backlight ON/OFF when DISP button press.

5. SCAN Button

  • When the button is pressed, it automatically scans the radio stations upwards.
  • The SCAN feature steps through each station, starting from the initial station, for 5 seconds.
  • Press the SCAN button again to stop the scan feature and to listen to the currently selected channel.

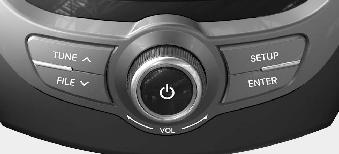

6.  Button & VOL Knob

6. Turns the audio system on/off when the ignition switch is on ACC or ON. Button & VOL Knob

Turns the audio system on/off when the ignition switch is on ACC or ON.

If the knob is turned clockwise/counterclockwise, the volume will increase /decrease.

7. SETUP Button

Press this button to enter SETUP mode, If no action is taken for 8 seconds, it will return to previous mode.

In SETUP mode, rotate the VOL knob to move the cursor between items, and push

In SETUP mode, rotate the VOL knob to move the cursor between items, and push the ENTER button to select.

MAIN

Select this item to enter the Scroll and SDVC setup.

SCROLL

SCROLL

Select whether long file names are scrolled continuously (On) or just once (Off).

SDVC (Speed Dependent Volume Control)

SDVC (Speed Dependent Volume Control)

Select this item to turn the SDVC feature On or Off. If it is turned ON, volume level is adjusted automatically according to the vehicle speed.

MEDIA

MEDIA

Select default display of MP3 play information. Folder/File or Artist/Title can be selected.

XM

XM

Select default display of XM mode. Cat./Ch. or Artist/Title can be selected.

PHONE

PHONE

Select this item to enter BLUETOOTH setup mode. Refer to BLUETOOTH PHONE OPERATION section for detailed information.

P.BASS (PowerBass)

P.BASS (PowerBass)

This function creates virtual sound effects and allows adjustments to the Bass level.

Off ➟ Low ➟ Mid ➟ High ➟ Off...

❈ AM Mode is not supported.

AUDIO

AUDIO

Select the item to change the BASS, MIDDLE, TREBLE, FADER and BALANCE tune mode. Press the ENTER button to select each mode and rotate the VOL knob clockwise or counterclockwise.

BASS Control

To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

MIDDLE Control

To increase the MIDDLE, rotate the knob clockwise, while to decrease the MIDDLE, rotate the knob counterclockwise.

TREBLE Control

To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

FADER Control

Turn the control knob clockwise to emphasize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

BALANCE Control

Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).
