Hyundai Elantra: Using CD Player - Audio system - Features of your vehicle - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Using CD Player


1. CD/AUX Button (CD)

1. CD/AUX Button (CD)

If the CD is loaded, turns to CD mode. If no CD, it displays No Media for 3 seconds and returns to the previous mode.

2. 1 Button (RANDOM)

Press this button for less than 0.8 seconds to activate RDM mode and more than 0.8 seconds to activate ALL RDM mode.

  • RDM : Only files/tracks in a folder/disc are played back in a random sequence.
  • ALL RDM (MP3/WMA Only) : All files in a disc are played back in the random sequence.

3. 2 Button (REPEAT)

Press this button for less than 0.8 seconds to activate 'RPT' mode and more than 0.8 seconds to activate 'FLD RPT' mode.

  • RPT : Only a track (file) is repeatedly played back.
  • FLD RPT (MP3/WMA Only) : Only files in a folder are repeatedly played back.

4. TRACK Button

  • Press 0.8 seconds to play from the beginning of current song. button for less than 0.8 seconds to play from the beginning of current song.
  • Press 0.8 seconds and press again within 1 second to play the previous song. button for less than 0.8 seconds and press again within 1 second to play the previous song.
  • Press or longer to initiate reverse direction high speed sound search of current song. button for 0.8 seconds or longer to initiate reverse direction high speed sound search of current song.
  • Press 0.8 seconds to play the next song. button for less than 0.8 seconds to play the next song.
  • Press or longer to initiate forward direction high speed sound search of current song. button for 0.8 seconds or longer to initiate forward direction high speed sound search of current song.

Do not insert a CD if CD indicator is lit. CAUTION

Do not insert a CD if CD indicator is lit.

5. CD Eject Button

5. CD Eject Button

Press button works regardless of ignition switch status. button to eject the CD. This button works regardless of ignition switch status.

6. CD Slot

Insert a CD label side up and gently push in while ignition switch is on ACC or ON. The audio automatically switches to CD mode and begins to play the CD.

If the audio was turned off, audio power will automatically turned on as the CD is inserted.

  • This audio only recognizes 12cm-size, CD-DA (Audio CD) or ISO data-CD (MP3 CD).
  • If UDF data-CD or non-CD (e.g. DVD) is inserted, "Reading Error" message will be displayed and the disc will be ejected.

7. SCAN Button

7. SCAN Button

Play each song in the CD for 10 seconds.To cancel SCAN Play, press this button again.

8. INFO Button

Displays the information of the current song.

  • Audio CD : Disc Title/Artist, Track Title /Artist, Total Track.
  • MP3 CD : File Name, Title, Artist, Album, Folder, Total Files (Not displayed if the information is unavailable on the CD or file.)

9. FLDR Button (FOLDER)

Press of the current folder and display the first song in the folder. button to move to child folder of the current folder and display the first song in the folder.

Press buttons to move to the folder displayed. / It will play the first song in the folder. buttons to move to the folder displayed. It will play the first song in the folder.

Press of the current folder and display the first song in the folder. button to move to parent folder of the current folder and display the first song in the folder.

Press buttons to move to the folder displayed. / buttons to move to the folder displayed.

10. Search Button

10. Search Button

Press the songs next to the currently played song. press the button to display the songs next to the currently played song. press the to the currently played song. button to display the songs before to the currently played song.

11. ENTER Button

Press the ENTER button to play the select song.

NOTE:

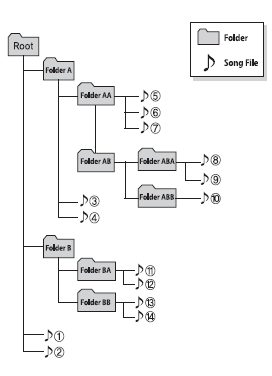

Order of playing files (folders) :

1. Song playing order : 1 to 14 sequentially.

2. Folder playing order :

2. Folder playing order :

❋ If no song file is contained in the folder, that folder is not displayed.
