Hyundai Elantra: Main fuse - Fuses - Maintenance - Hyundai Elantra HD 2006Ц2010 Owners ManualHyundai Elantra: Main fuse


If the main fuse is blown, it must be removed as follows:

If the main fuse is blown, it must be removed as follows:

1. Disconnect the negative battery cable.

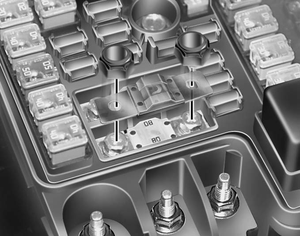

2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.

✽ NOTICE

If the main fuse is blown, consult an Authorized Hyundai Dealer.
