Hyundai Elantra: Fuse/Relay panel description - Fuses - Maintenance - Hyundai Elantra HD 20062010 Owners ManualHyundai Elantra: Fuse/Relay panel description


Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay name and capacity.

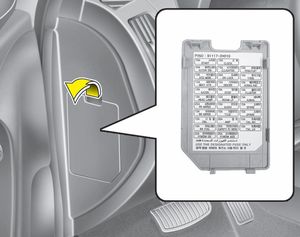

Drivers side panel

Drivers side panel

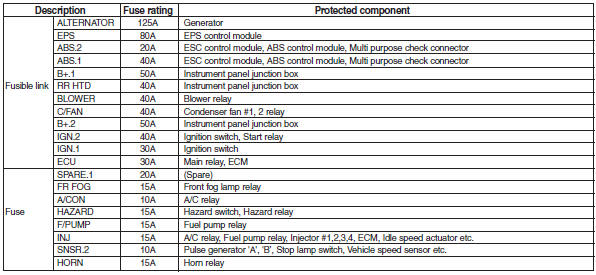

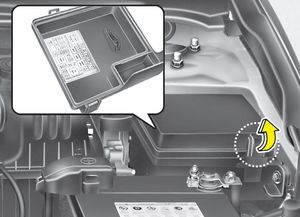

Engine compartment

Engine compartment

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

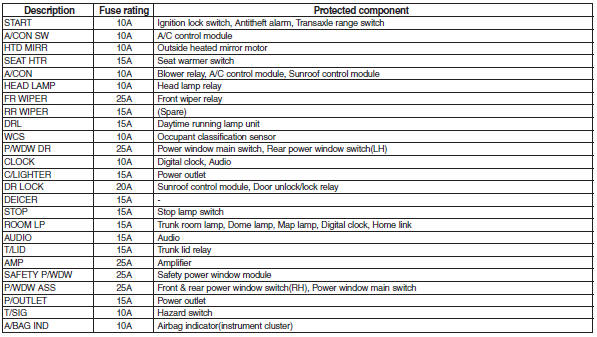

Driver's side fuse panel

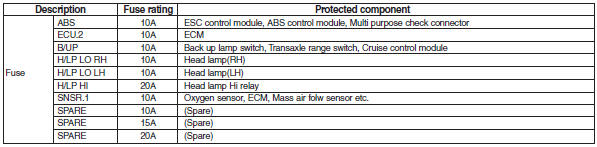

Engine compartment

Engine compartment

Light bulbs

    Main fuse
    If the main fuse is blown, it must be removed as follows: 1. Disconnect the negative battery cable. 2. Remove the nuts shown in the picture above. 3. Replace the fuse with a new one of the same r ...

    Light bulbs
    WARNING - Working on the lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the LOCK position and turn off the lights to avoid ...
