Hyundai Elantra: Engine compartment panel fuse replacement - Memory fuse - Fuses - Maintenance - Hyundai Elantra HD 2006Ц2010 Owners ManualHyundai Elantra: Engine compartment panel fuse replacement


1. Turn the ignition switch and all other switches off.

1. Turn the ignition switch and all other switches off.

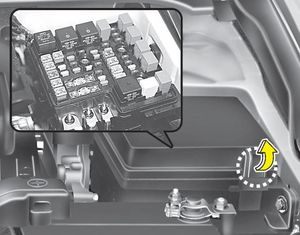

2. Remove the fuse box cover by pressing the tap and pulling up.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the main fuse box in the engine compartment.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Hyundai dealer.

CAUTION CAUTION

After checking the fuse box in the engine compartment, securely install the fuse box cover. If not, electrical failures may occur from water leaking in.

    Memory fuse
    Your vehicle is equipped with the memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the ...

    Main fuse
    If the main fuse is blown, it must be removed as follows: 1. Disconnect the negative battery cable. 2. Remove the nuts shown in the picture above. 3. Replace the fuse with a new one of the same r ...
