Hyundai Elantra: AUX(Auxiliary) jack. Schematic Diagrams - Audio - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: AUX(Auxiliary) jack. Schematic Diagrams

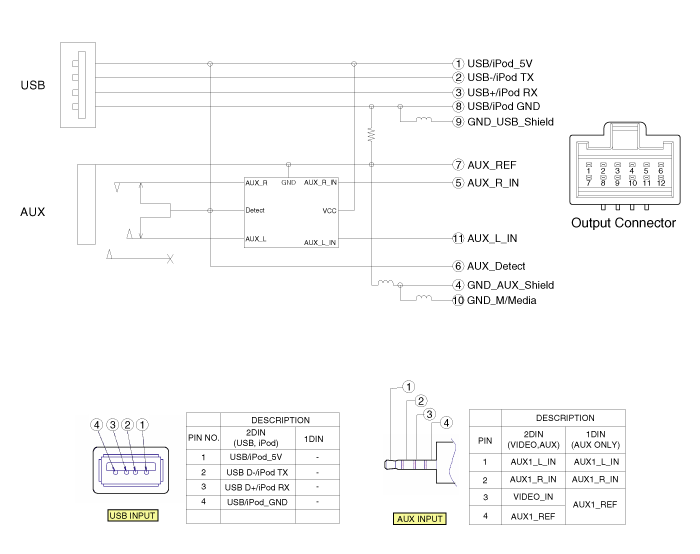

Circuit Diagram


    Audio Remote control. Repair procedures
    Inspection 1. Check for resistance between No.6 and No.7 terminals in each switch position. Switch Connector term ...

    AUX(Auxiliary) jack. Description and Operation
    Description The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player ...
