Hyundai Elantra: AUX(Auxiliary) jack. Description and Operation - Audio - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: AUX(Auxiliary) jack. Description and Operation


Description

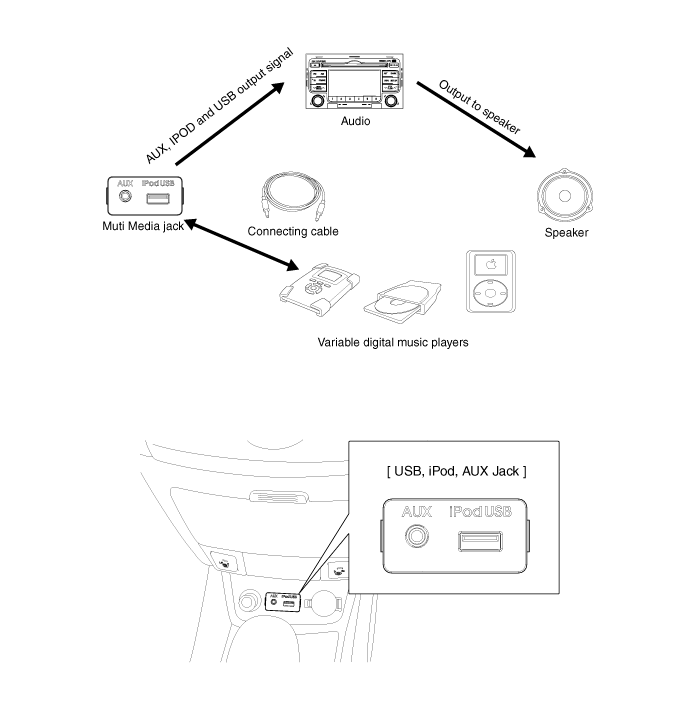

The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player and etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.
In case of distortions from media connected to the AUX source, the audio unit may not be defect but the output level of the used media does not match the specification of the AUX input.


    AUX(Auxiliary) jack. Repair procedures
    Removal Multi Media Jack 1. Remove the floor console (A). (Refer to Body Gr. - "Console") 2. Disconnect the jack ...
