Hyundai Elantra: Trunk Lid. Repair procedures - Exterior - Body (Interior and Exterior) - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Trunk Lid. Repair procedures


Replacement

Trunk Lid Trim Replacement
1.
Detach the clips, then remove the trunk trim (A).
-
When removing and installing the trunk lid, an assistant is necessary.
-
Wear gloves to protect hands from injury.

2.
Installation is the reverse of removal.
-
Replace any damaged clips.
Trunk Lid Latch Replacement
1.
Remove the trunk lid trim.
2.
Disconnect the key cylinder rod (A).
3.
After loosening the mounting bolt, then remove the latch assembly (C).
4.
Disconnect the connector (B).

5.
Installation is the reverse of removal.
Key Holder Replacement
1.
Remove the trunk lid trim.
2.
Disconnect the rod (A).
3.
After loosening the mounting bolt, then remove the key holder (C).

4.
Installation is the reverse of removal.
Trunk Lid Weatherstrip Replacement
1.
Remove the trunk lid weatherstrip (A).

2.
Installation is the reverse of removal.
Trunk Lid Assembley Replacement
1.
Remove the following items.
A.
Trunk lid trim.
B.
Trunk lid latch.
C.
Key holder.
-
When removing and installing the hood, an assistant is necessary.
-
Take care not to damage the hood and body.
-
When removing the clips, use a clip remover.
2.

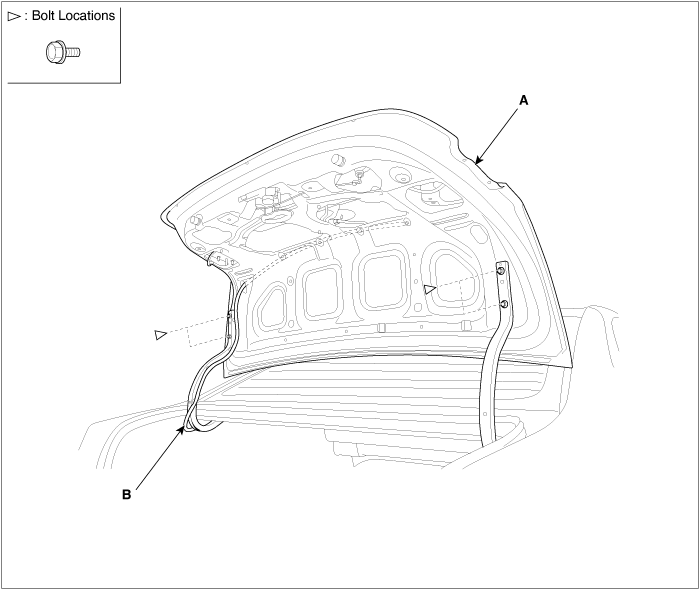

Disconnect the trunk lid wiring harness (B).
3.
After loosening the mounting bolts, then remove the trunk lid (A).
4.
Installation is the reverse of removal.

Fuel Filler Door Replacement

1.
Loosen the bolts, then remove the fuel filler door (A).

2.
Installation is the reverse of removal.
-
Make sure the fuel fill door opens properly and locks securely.
3.
Check that the fuel fill door (A) fit flush against the body. If necessary, adjust it.

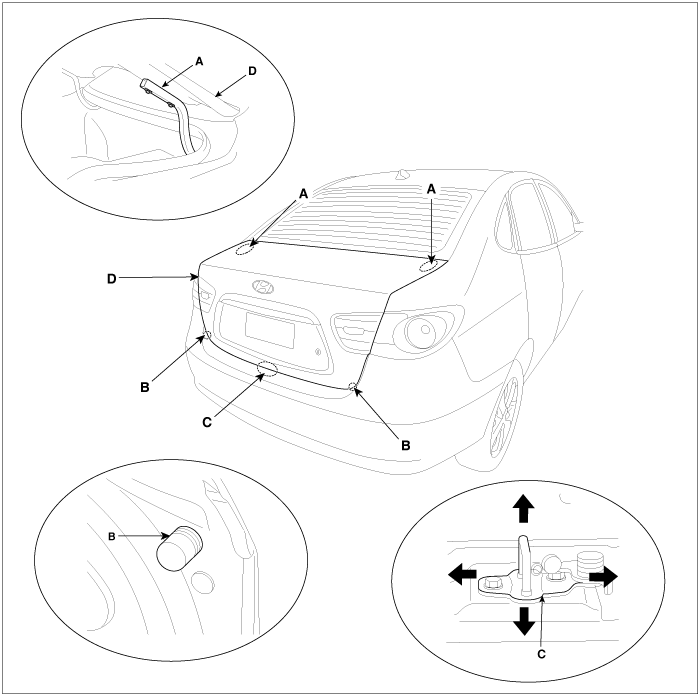

Adjustment

1.
After loosening the trunk lid hinge (A) mounting bolt, adjust the hood (D) by moving it up or down, or right or left.
2.
Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
3.
After loosening the trunk lid latch (C) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.
