Replacement

HOOD ASSEMBLY REPLACEMENT
-
When removing and installing the hood, an assistant is necessary.
-
Take care not to damage the hood and body.
-
When removing the clips, use a clip remover.
1.
Disconnect the windshield washer nozzle connecting tube.

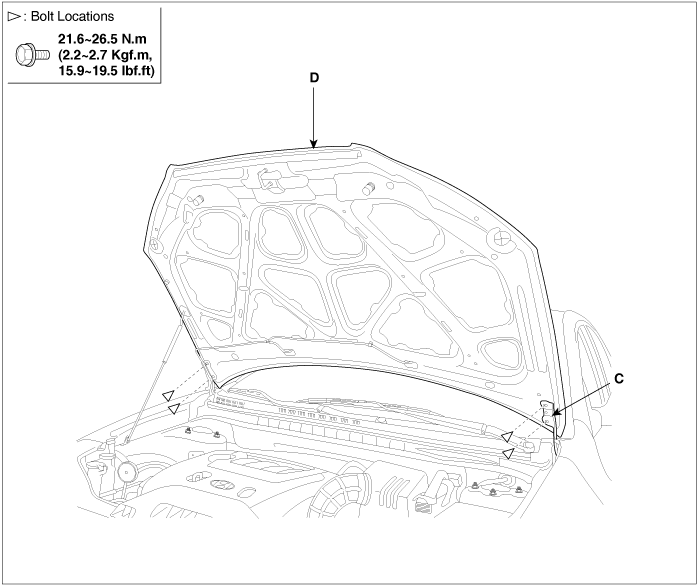

2.
After loosening the hood hinge (C) mounting bolts, remove the hood (D).
3.
Installation is the reverse of removal.
-
Make sure the hood opens properly and locks securely.
-
Adjust the hood alignment.

Hood Release Handle Replacement
1.
After loosening the mounting screw, then remove the hood release handle (A).

2.
Installation is the reverse of removal.
-
Make sure the hood latch cable is connected properly.
-
Make sure the hood locks securely.
Hood Latch Replacement
1.
Remove the front bumper cover.
2.
Detach the clips, then remove the hood latch cover(A).

3.
Remove the hood latch (A) mounting bolts.

4.
Disconnect the hood latch cable (A) and remove the latch (B).

5.
Installation is the reverse of removal.
-
Make sure the hood latch cable is connected properly.
-
Make sure the hood locks securely.
Hood Latch Cable Replacement
1.
Remove the following items.
A.
Hood latch.
B.
Hood release handle.
C.
Wheel guard.
-
Take care not to bend the cable.

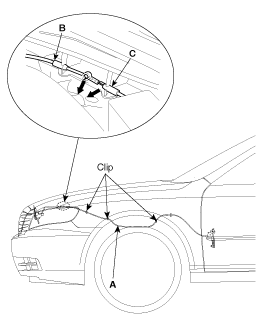

2.
Disconnect the hood latch cable (B) and release cable (C).
3.
Remove the hood latch cable (A).

4.
Installation is the reverse of removal.
-
Make sure the hood latch is connected properly.
-
Replace any damaged clips.

Adjustment

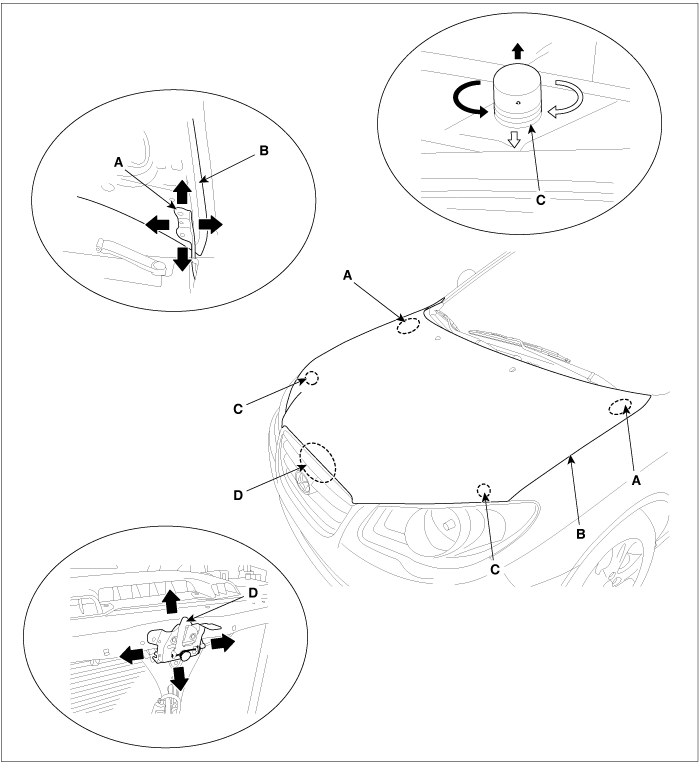

Adjust Hood
1.
After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
2.
Adjust the hood height by turning the hood overslam bumpers (C).
3.
After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left.
