Hyundai Elantra: Temperature control - Manual heating and air conditioning - Automatic climate control system - Features of your vehicle - Hyundai Elantra HD 20062010 Owners ManualHyundai Elantra: Temperature control


The temperature will increase to the maximum HI by pushing the up button. Each

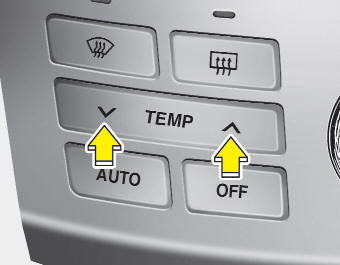

The temperature will increase to the maximum HI by pushing the up button. Each push of the button will cause the temperature to increase by 1F/0.5C.

The temperature will decrease to the minimum LO by pushing the down button. Each push of the button will cause the temperature to decrease by 1F/0.5C. When set to the lowest temperature setting, the air conditioning will operate continuously.

Temperature conversion

If the battery has been discharged or disconnected, the temperature mode display will reset to Fahrenheit.

This is normal condition. You can switch the temperature mode between Fahrenheit to Centigrade as follows;

While depressing the AUTO button, depress the OFF button for 3 seconds or more. The display will change from Fahrenheit to Centigrade, or from Centigrade to Fahrenheit.

    Mode selection
    The mode selection button controls the direction of the air flow through the ventilation system. The air flow outlet port is converted as follows: Refer to the illustration in the Manual clim ...

    Air intake control
    This is used to select outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button. Recirculated air position The indicator ligh ...
