Hyundai Elantra: Steering Gear box. Components and Components Location - Electric Power Steering - Steering System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Steering Gear box. Components and Components Location

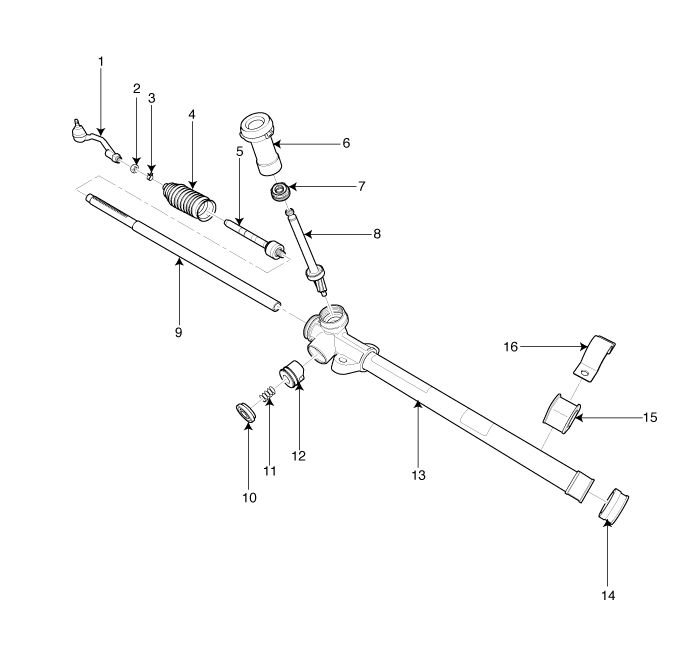

Components

1. Tie rod end
2. Lock nut
3. Bellows clip
4. Bellows
5. Tie rod
6. Dust packing & Cap
7. Pinion plug & Oil seal
8. Pinion assembly
9. Rack bar
10. Yoke plug
11. Yoke spring
12. Support yoke assembly
13. Rack housing
14. Rubber sleeve
15. Mounting rubber
16. Mounting bracket
