Hyundai Elantra: Schematic Diagrams - General Information - Emission Control System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Schematic Diagrams

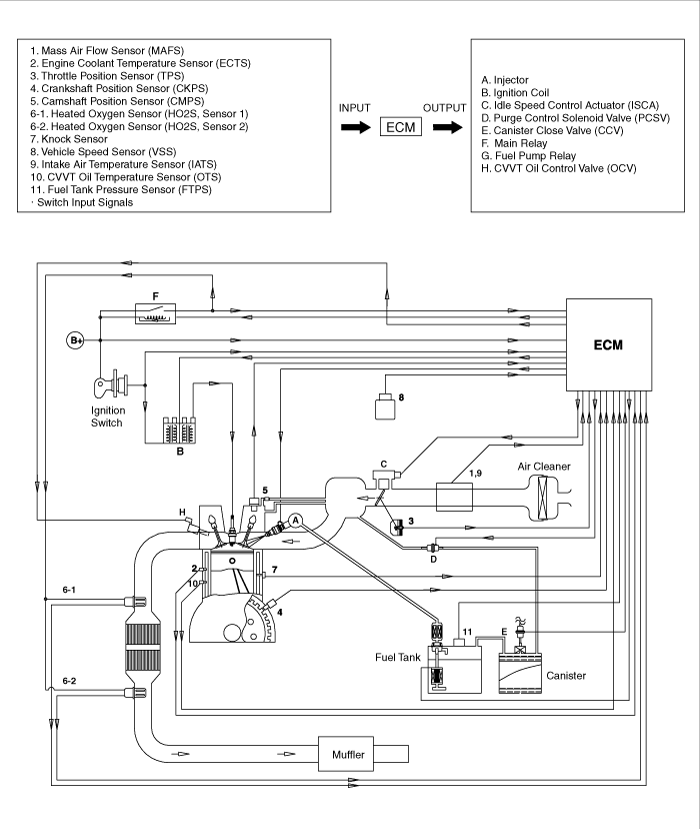

Schematic Diagram


    Components and Components Location
    Components Location 1. Purge Control Solenoid Valve (PCSV) 2. PCV Valve 3. Canister 4. Catalytic Converter 5. Fuel Tank Air Filter 6. Fuel Tank Pressure Sens ...
