Hyundai Elantra: Components and Components Location - General Information - Emission Control System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Components and Components Location

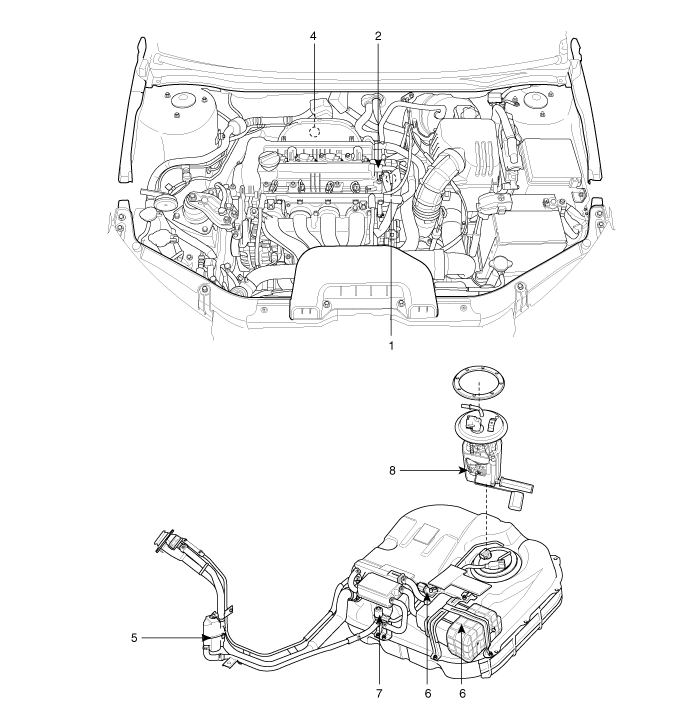

Components Location

1. Purge Control Solenoid Valve (PCSV)
2. PCV Valve
3. Canister
4. Catalytic Converter
5. Fuel Tank Air Filter
6. Fuel Tank Pressure Sensor (FTPS)
7. Canister Close Valve (CCV)
8. Fuel Level Sensor (FLS)

1
Purge Control Solenoid Valve (PCSV)
2
PCV Valve

3
Canister
4
Catalytic Converter

5
Fuel Tank Air Filter
6
Fuel Tank Pressure Sensor (FTPS)
7
Canister Close Valve (CCV)

8
Fuel Level Sensor (FLS)





    Troubleshooting
    Troubleshooting Symptom Suspect area Remedy Engine will not start or hard to start Vacuum hose disconnected or damaged Repa ...

    Schematic Diagrams
    Schematic Diagram ...
