Hyundai Elantra: Manual Transaxle Shift Control. Components and Components Location (M5CF2) - Manual Transaxle Control System - Manual Transaxle System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Manual Transaxle Shift Control. Components and Components Location (M5CF2)

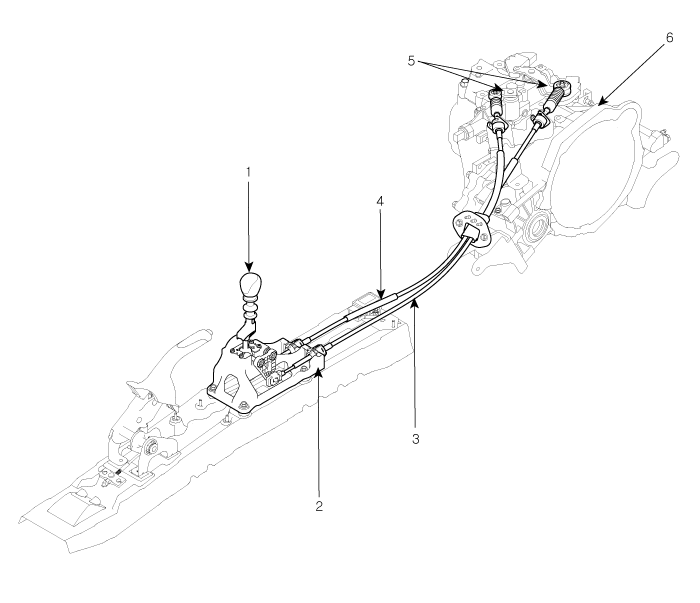

Components(1)

1. Shift lever knob
2. Shift lever assembly
3. Select cable assembly
4. Shift cable assembly
5. Shift lever assembly(Manual Transaxle Side)
6. Manual transaxle assembly

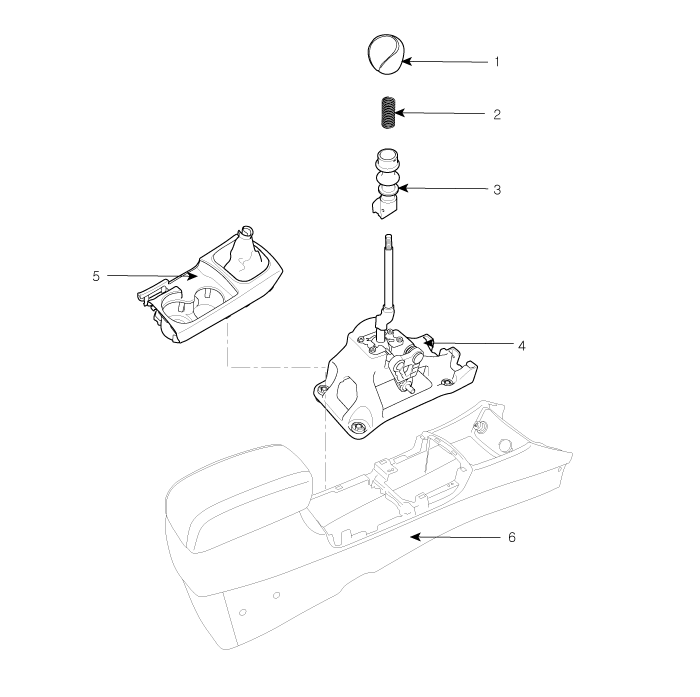

Components(2)

1. Shift lever knob
2. Spring
3. Skirt
4. Shift lever assembly
5. Console upper cover
6. Centor console


    Manual Transaxle Shift Control. Repair procedures (M5CF2)
    Removal 1. Remove the upper cover (A) from the center console. 2. Remove the center console. (refer to Console in BD group) ...
