Hyundai Elantra: Instrument Cluster. Components and Components Location - Indicators And Gauges - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Instrument Cluster. Components and Components Location


Components

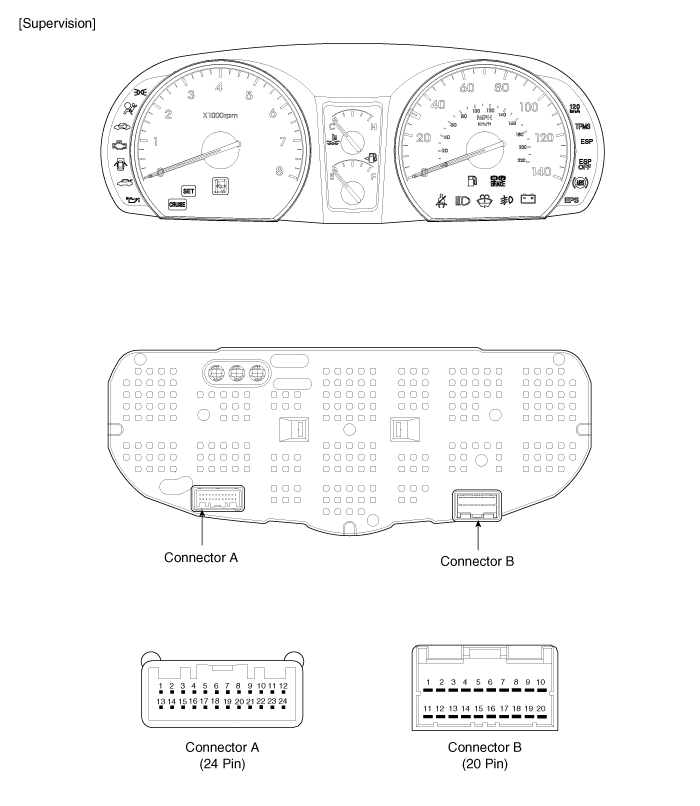

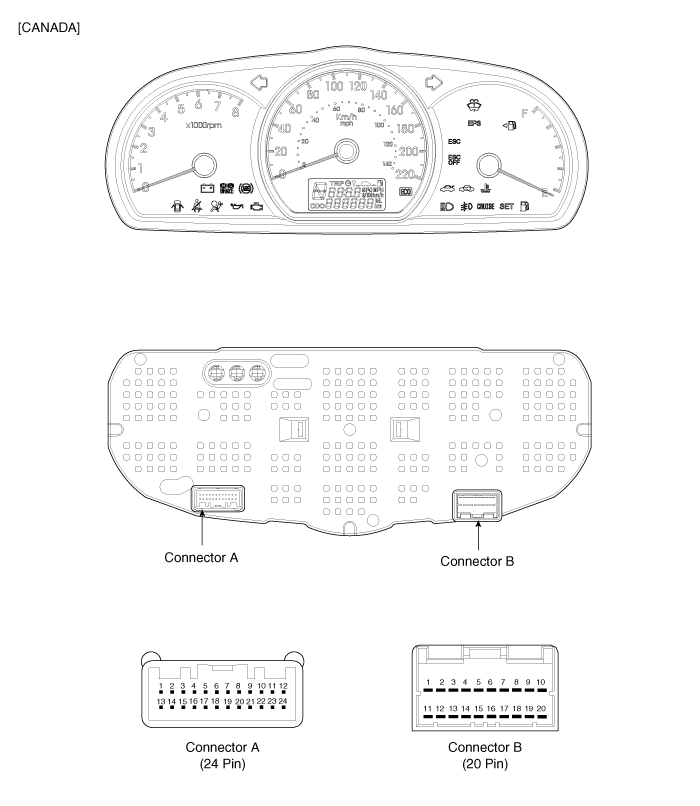

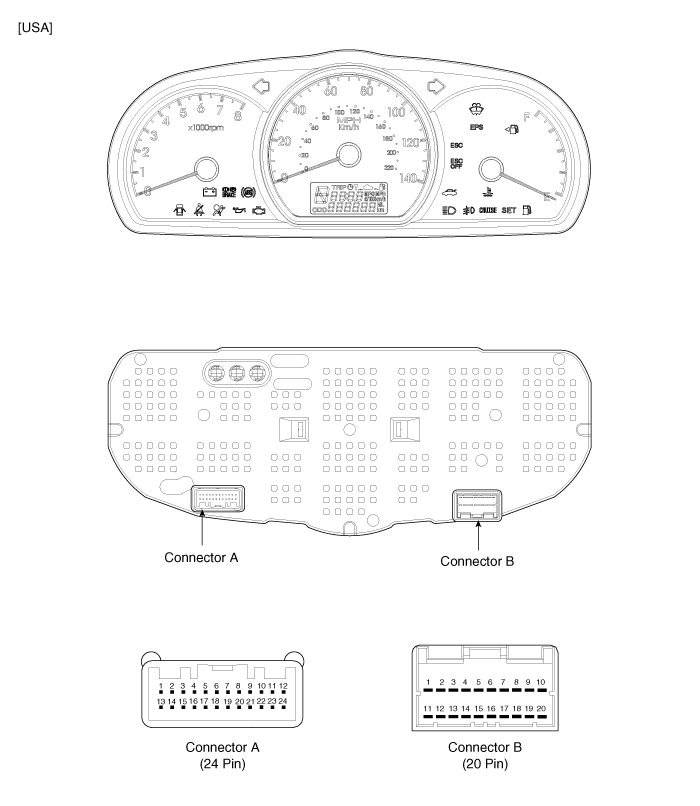

Instrument Cluster Connector Pin
NO.
Connector A
Connector B
1
-
Immobilizer
2
Oil pressure
Engine check
3
Charge
ABS
4
Brake
EBD
5
Seat belt
High speed warning
6
CAN Hi
Door open
7
Mode switch
Airbag +
8
High beam(+)
Airbag -
9
-
Turn signal-L
10
-
Turn signal-R
11
Water separator
Power ground
12
Fuel Sender
Trunk open
13
Battery +
Lower washer in
14
IGN +
ESC
15
ILL(+)
ESC OFF
16
ILL(-)
-
17
Signal GND
-
18
Fuel GND
Set
19
Speed signal
Cruise
20
-
Front fog lamp
21
-

22
-
23
CAN LOW
24
-


    Components and Components Location
    Component Location 1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid ...
