Hyundai Elantra: Components and Components Location - Indicators And Gauges - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Components and Components Location

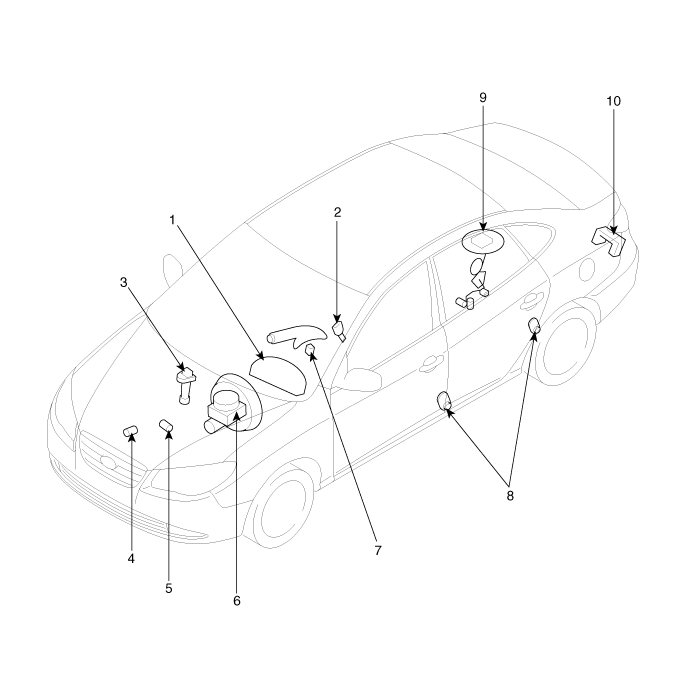

Component Location

1. Cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch
7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Tailgate switch


    Instrument Cluster. Components and Components Location
    Components Instrument Cluster Connector Pin NO. Connector A Connector B 1 - Immobilizer 2 ...
