Hyundai Elantra: Inside light - Rear combination light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Inside light

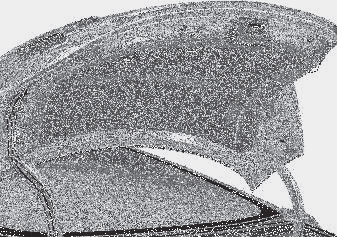

1.Open the trunk.

1.Open the trunk.

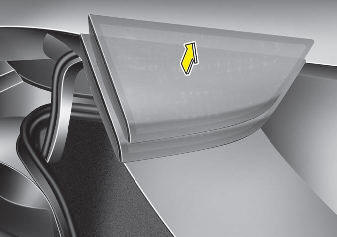

2.Loosen the retaining screw of the trunk lid cover and then remove the cover.

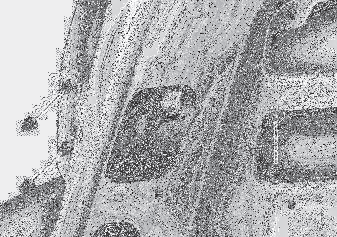

3.Disconnect the connector and then remove the nuts by turning the nuts counter clockwise.

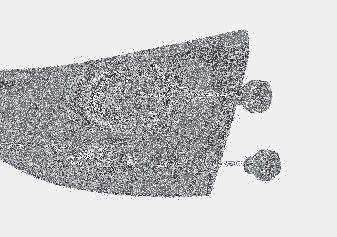

4.Take the light assembly out.

4.Take the light assembly out.

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb by pulling it out

7.Insert a new bulb by inserting it into the socket.

8. Install the light assembly to the trunk.

9.Reinstall the nuts and connector and then the trunk lid cover by pushing in the screw.

    Outside light
    1. Open the trunk lid. 2. Remove the service cover by pulling out the service cover. 3. Loosen the assembly retaining nuts. 4. Remove the rear combination light assembly from the body of the ...

    High mounted stop light replacement
    1. Open the trunk. 2. Remove the socket by turning it counterclockwise until the tabs on the socket align with the slots. 3. Remove the bulb from the socket by pressing it in and rotating it c ...
