Hyundai Elantra: High mounted stop light replacement - Light bulbs - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: High mounted stop light replacement

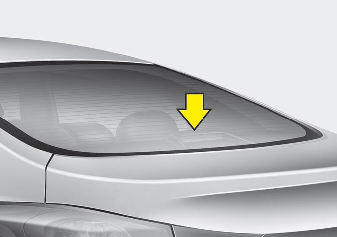

1. Open the trunk.

1. Open the trunk.

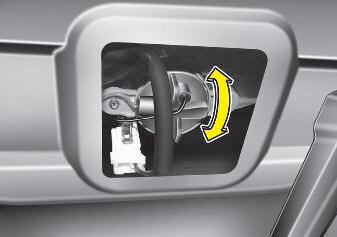

2. Remove the socket by turning it counterclockwise until the tabs on the socket align with the slots.

3. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

4. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

5. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

    Inside light
    1.Open the trunk. 2.Loosen the retaining screw of the trunk lid cover and then remove the cover. 3.Disconnect the connector and then remove the nuts by turning the nuts counter clockwise. ...

    License plate light bulb replacement
    1. Remove the cover by pressing it as direction of the arrows. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb. 4. Reinstall in the reverse order. ...
