Hyundai Elantra: Inhibiter Switch. Description and Operation (A4CF2) - Automatic Transaxle Control System - Automatic Transaxle System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Inhibiter Switch. Description and Operation (A4CF2)


Description

Sensor type
1.
Type : Rotary
2.
Available temperature range : -40~150∞C(-40~320∞F)
3.
Tightening torque :10~12Nm(1.0~1.2kgf.m, 7~8lb-ft )
Function

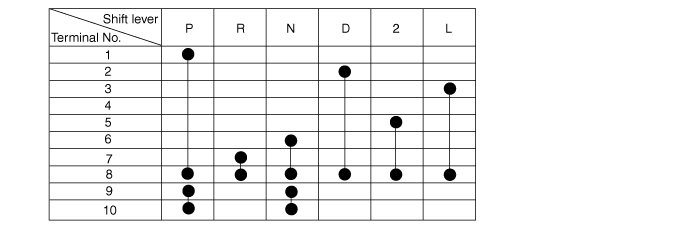

Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N".
