Hyundai Elantra: Front windshield wiper blade Type B - Blade replacement - Wiper blades - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Front windshield wiper blade Type B

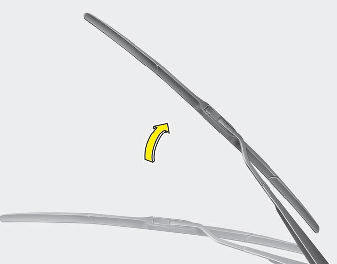

1. Raise the wiper arm.

1. Raise the wiper arm.

Do not allow the wiper arm to fall against the windshield, since it may chip CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

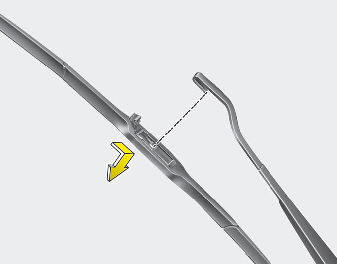

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

3. Install the new blade assembly in the reverse order of removal.

3. Install the new blade assembly in the reverse order of removal.

    Front windshield wiper blade Type A

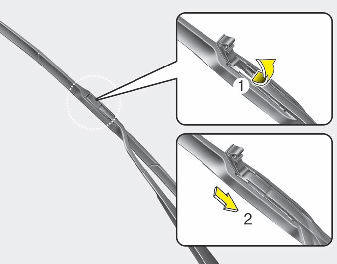

    1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip. CAUTION Do not allow the wiper arm to fall against the windshield, since it may chip or crack the ...
