Hyundai Elantra MD/UD: Front windshield wiper blade Type A

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Owners manual / Maintenance / Wiper blades / Blade replacement / Front windshield wiper blade Type A

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic

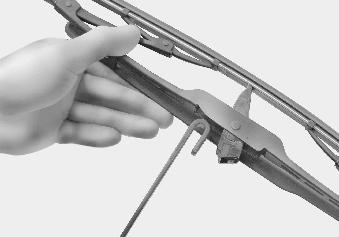

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

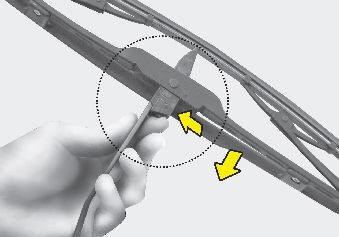

2. Compress the clip and slide the blade assembly downward.

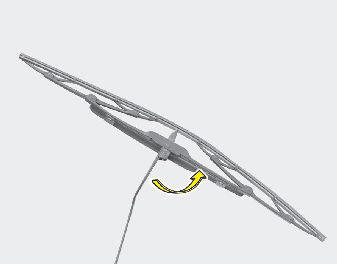

3. Lift it off the arm.

4. Install the blade assembly in the reverse order of removal.
