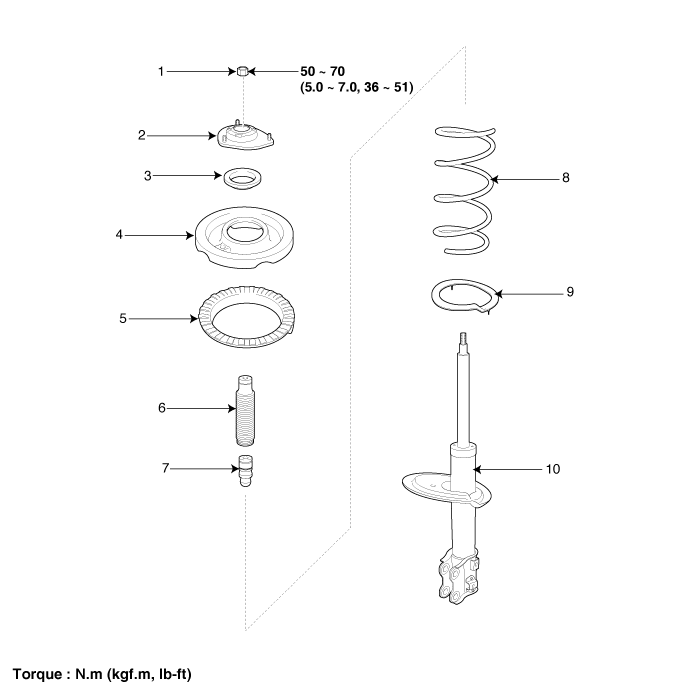

Front Strut Assembly

1. Self locking nut
2. Insulator assembly
3. Strut bearing
4. Spring upper seat
5. Spring upper pad
6. Dust cover
7. Bumper rubber
8. Coil spring
9. Spring lower pad
10. Shock absorber


    Components and Components Location
    Components 1. Front strut assembly 2. Sub frame 3. Front lower arm 4. Front stabilizer bar ...

    Front Strut Assembly. Repair procedures
    Removal 1. Remove the front wheel & tire. Be careful not to damage to the ...
