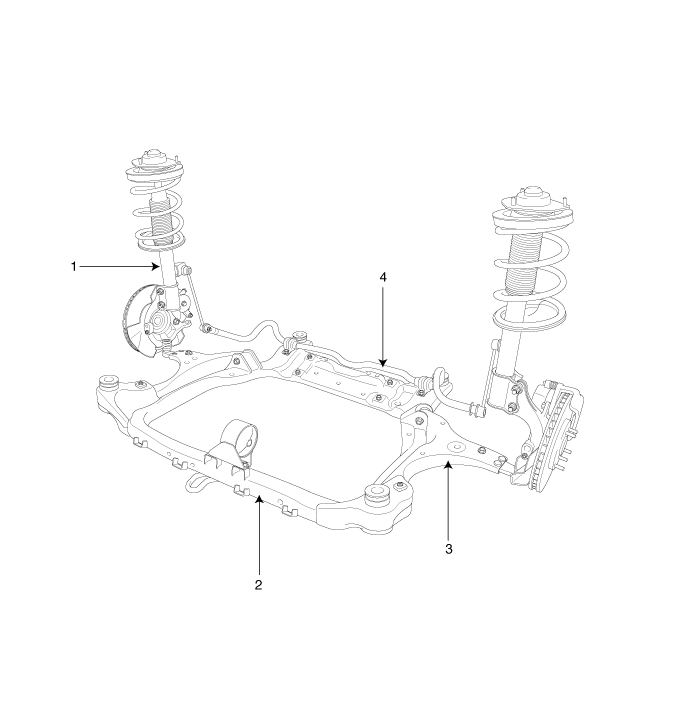

Components

1. Front strut assembly
2. Sub frame
3. Front lower arm
4. Front stabilizer bar


    Front Strut Assembly. Components and Components Location
    Front Strut Assembly 1. Self locking nut 2. Insulator assembly 3. Strut bearing 4. Spring upper seat 5. Spring upper pad 6. Dust cover 7. Bumper rubber ...
