Hyundai Elantra: Components Location - Components and Components Location - General Information - Restraint - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Components Location


Supplemental Restraint System Control Module (SRSCM)

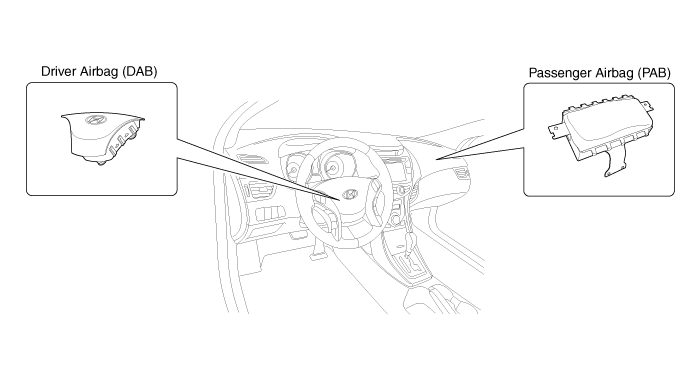

Driver Airbag (DAB) / Passenger Airbag (PAB)

Side Airbag (SAB)

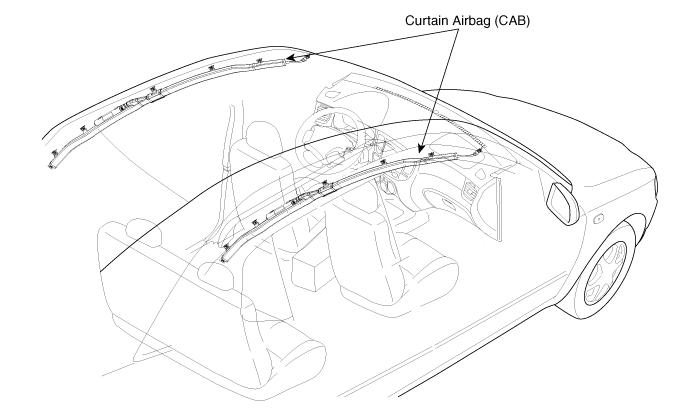

Curtain Airbag (CAB)

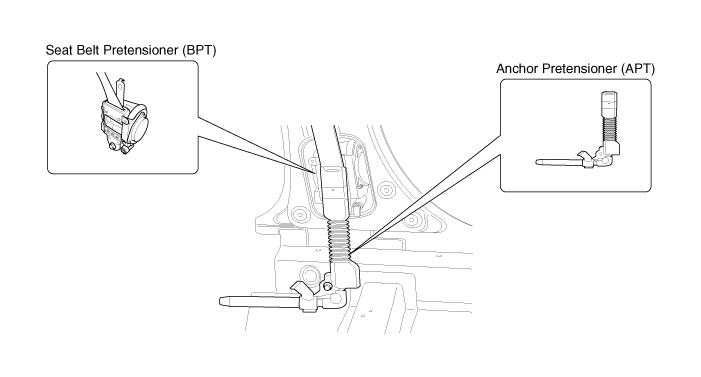

Seat Belt Pretensioner (BPT) / Anchor Pretensioner(APT)

Front Impact Sensor (FIS)

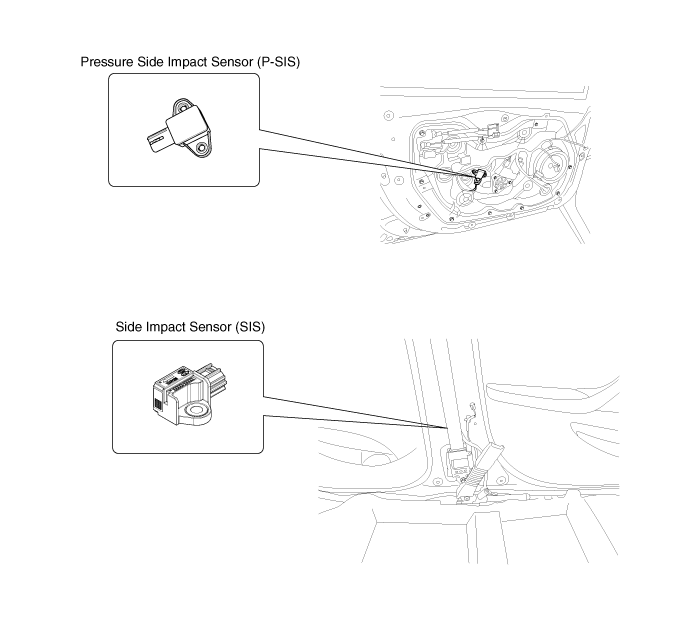

Side Impact Sensor (SIS)


    Components
    1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side ...

    SRSCM
    ...
