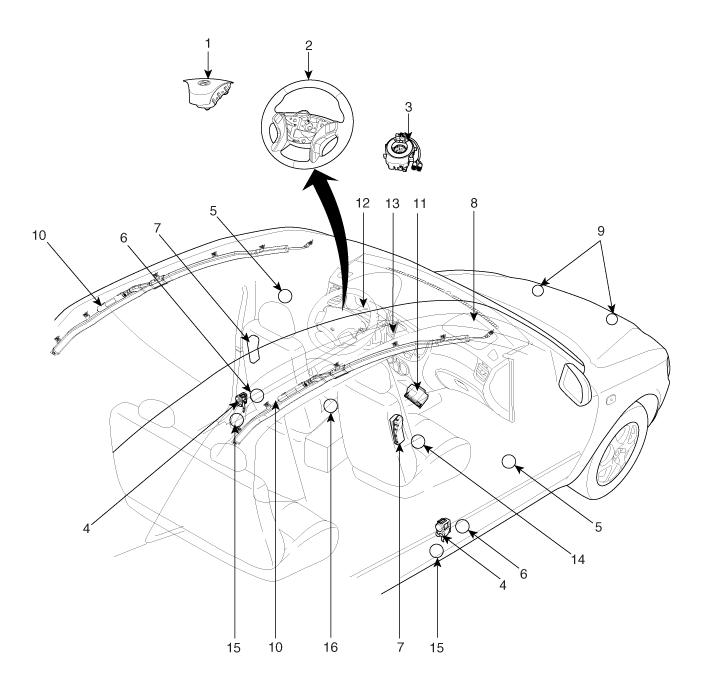

Hyundai Elantra: Components - Components and Components Location - General Information - Restraint - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Components


1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Pressure Side Impact Sensor (P-SIS)
6. Side Impact Sensor (SIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Telltale Lamp
14. Weight Classification System (WCS) Module
15. Anchor Pretensioner (APT)
16. Seat Track Position Sensor (STPS)


    Components Location
    Supplemental Restraint System Control Module (SRSCM) Driver Airbag (DAB) / Passenger Airbag (PAB) Side Airbag (SAB) Curtain Airbag (CA ...
