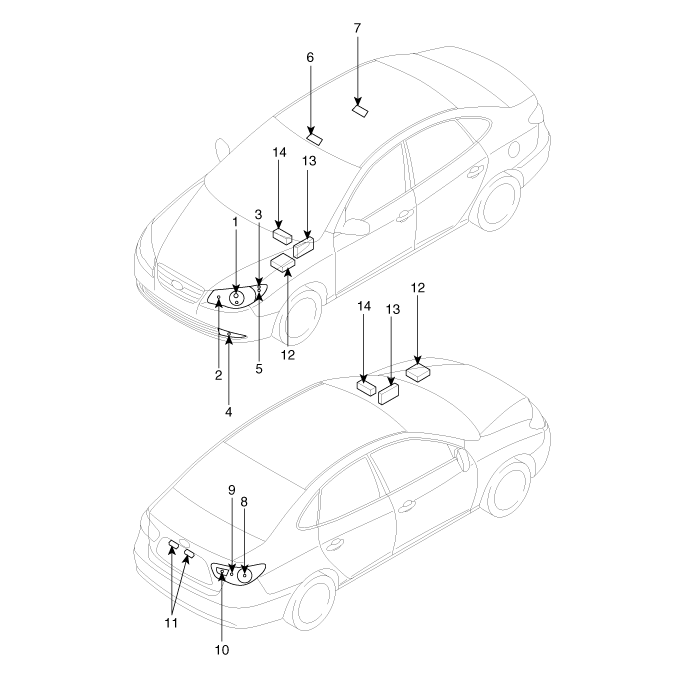

Component Location

1. Head lamp (Low)
2. Head lamp (High)
3. Position lamp
4. Front fog lamp
5. Front turn signal lamp
6. Over head lamp
7. Room lamp
8. Tail/Stop lamp
9. Rear turn signal lamp
10. Back up lamp
11. License plate lamp
12. Engine room junction box
(Head lamp Low/High, Fog lamp relay)
13. Passenger compartment junction box (Tail lamp relay)
14. ICM relay box (Hazard relay)
