Components

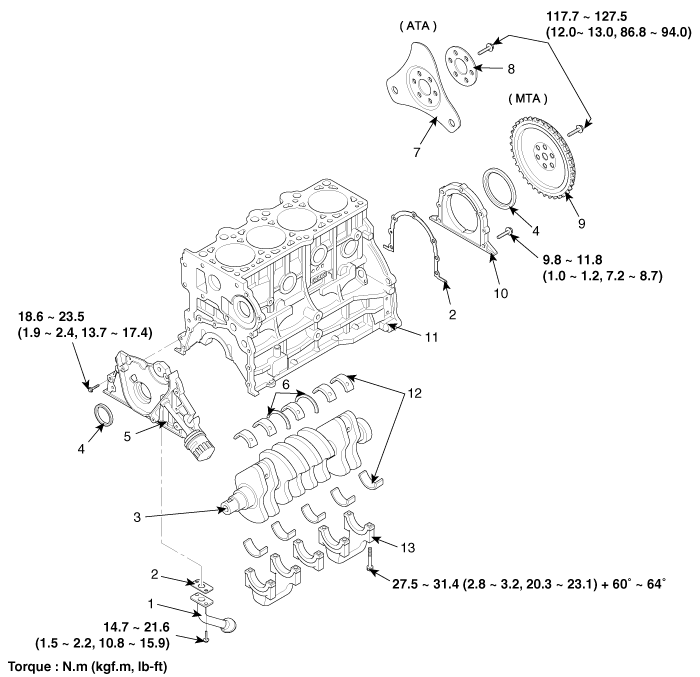

1. Oil screen
2. Gasket
3. Crankshaft
4. Oil seal
5. Front case
6. Thrust bearing
7. Drive plate
8. Washer
9. Adapter plate
10. Rear oil seal case
11. Cylinder block
12. Main bearing
13. Main bearing cap

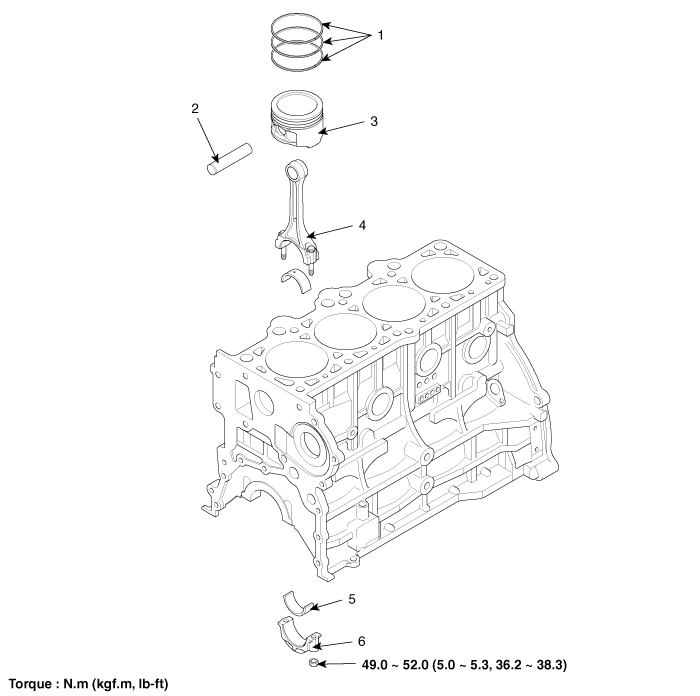

1. Piston ring
2. Piston pin
3. Piston
4. Connecting rod
5. Connecting rod bearing
6. Connecting rod bearing cap


    Repair procedures
    Disassembly 1. M/T : remove flywheel. 2. A/T : remove drive plate. 3. Install engine to engine stand for disas ...
