Hyundai Elantra: Brake Booster. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Brake Booster. Components and Components Location

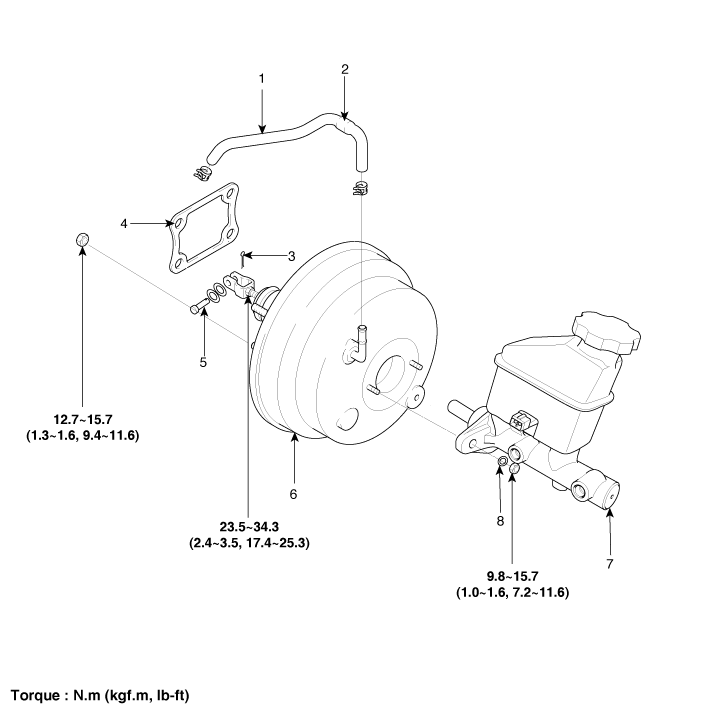

Components

1. Vacuum hose
2. Check valve
3. Snap pin
4. Seal
5. Clevis pin
6. Brake booster
7. Mater cylinder
8. Washer


    Repair procedures
    Operation and Leakage Check Check all of the following items: Component Procedure Brake Booster (A) Check brake operation by applying the brakes ...

    Brake Booster. Repair procedures
    Removal 1. Disconnect the vacuum hose (B) from the brake booster (A). 2. Remove the master cylinder. (Refer to Master cylinder ...
