Hyundai Elantra: Body Control Module (BCM). Schematic Diagrams - BCM (Body Control Module) - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Body Control Module (BCM). Schematic Diagrams


Circuit Diagram


    Body Control Module (BCM). Specifications
    Specifications Item Requirement Remark Rated voltage DC 12V Shall activate normally in these range. Operat ...

    Body Control Module (BCM). Description and Operation

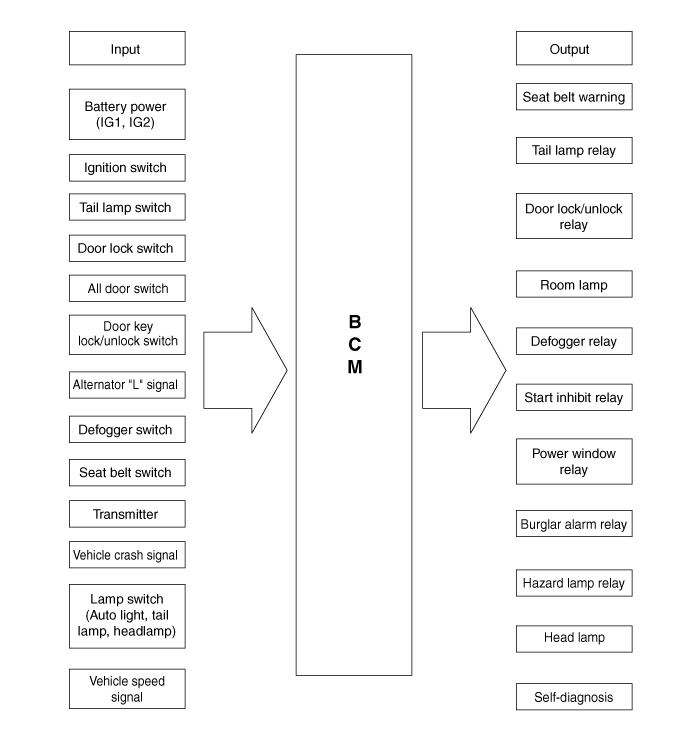

    Description Body control module (A) receives various input switch signals controlling time and alarm functions for tail lamp, rear fog lamp, wiper control, buzzer warning, fron ...
