Hyundai Elantra: Audio Remote control. Schematic Diagrams - Audio - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Audio Remote control. Schematic Diagrams

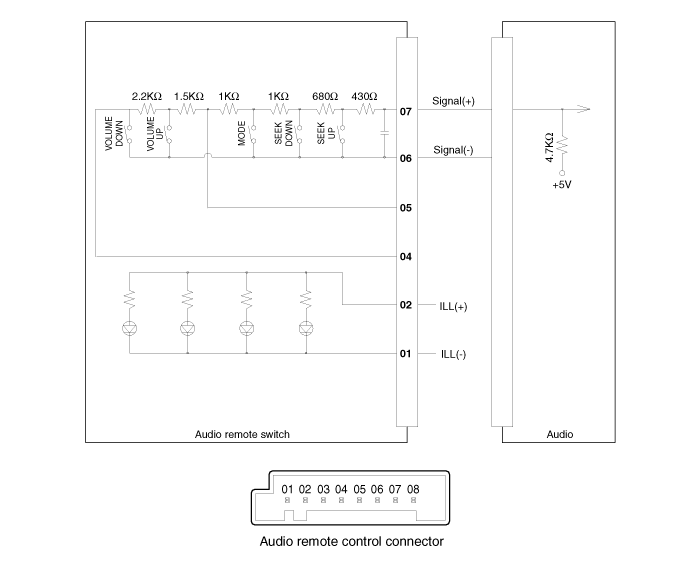

Circuit Diagram


    Antenna. Repair procedures
    Inspection Antenna Cable 1. Remove the antenna jack from the audio unit and antenna. 2. Check for continuity between the center poles of ...

    Audio Remote control. Repair procedures
    Inspection 1. Check for resistance between No.6 and No.7 terminals in each switch position. Switch Connector term ...
