Hyundai Elantra: ABS Control Unit. Components and Components Location - ABS(Anti-Lock Brake System) - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: ABS Control Unit. Components and Components Location

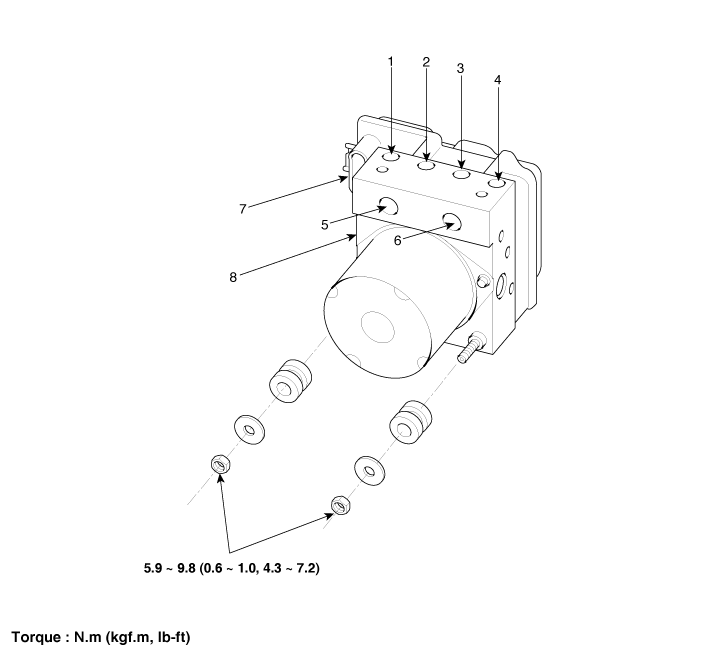

Components

1. Front - right tube
2. Rear - left tube
3. Rear - right tube
4. Front - left tube
5. Master cylinder tube2
6. Master culinder tube1
7. ABS control module connector (26P)
8. ABS control module (HECU)


    Troubleshooting
    Standard Flow of Diagnostic Troubleshooting Notes With Regard To Diagnosis The phenomena listed in the following table are not abnormal. Phenomenon Explanatio ...

    ABS Control Unit. Repair procedures
    Removal 1. Disconnect the battery(-) terminal. 2. Disconnect the brake tubes from the HECU. Tightening torque : ...
