Hyundai Elantra: XM SATELLITE RADIO(PA760S) - Audio system - Features of your vehicle - Hyundai Elantra HD 2006Ц2010 Owners ManualHyundai Elantra: XM SATELLITE RADIO(PA760S)

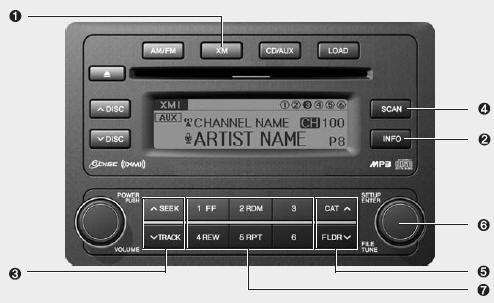

1. XM Selection Button

1. XM Selection Button
2. INFO Button
3. Automatic Channel Selection Button
4. SCAN Button
5. CATEGORY Search Button
6. Manual Channel Selection Knob
7. Preset Button

1. XM Selection Button

Turns to XM Satellite Radio Mode. XM mode toggles in order to XM1 ➟ XM2 ➟ XM3 ➟ XM1... when the button is pressed each time.

2. INFO Button

Displays the information of the current channel in the order of Artist/Song title ➟ Category/Channel name ➟ Current Play Channel ➟ Artist/Song title ➟ Category/ Channel name... when the button is pressed each time. If it can not display the whole text information, rotate the tune button to see the next page.

3. Automatic Channel Selection Button

  • Push [TRACK than 0.8 second to select previous channel.] button for less than 0.8 second to select previous channel.
  • Push [SEEK than 0.8 second to select next channel.] button for less than 0.8 second to select next channel.
  • Radio ID : Seek or Tune to XM channel 0 to display the Radio ID.

4. SCAN Button

Press to hear a brief sampling of all channels. To cancel the scan mode, press the button once again.

5. CATEGORY Search Button

  • Push [FLDR previous category.] button to search previous category.
  • Push [CAT next category. To listen to the displayed category, press the TUNE/ENTER knob.To] button to search next category. To listen to the displayed category, press the TUNE/ENTER knob.To scan channel in displayed category, press the [SCAN] button. To search channel in displayed category, press [SEEK] buttons or turn the tune button clockwise/counterclockwise. (CATEGORY icon will be turned on in Category mode)

6. Manual Channel Selection Knob

While listening to XM broadcast, rotate this knob clockwise or counterclockwise to search other channels while listening to current channel. (Turn clockwise to search higher channels, and counterclockwise to lower channels.)

7. Preset Button

Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button. Push [PRESET] button for 0.8 second or longer to save current channel to the respective button with a beep.

    XM SATELLITE RADIO(PA710S)
    1. XM Selection Button 2. INFO Button 3. Automatic Channel Selection Button 4. SCAN Button 5. CATEGORY Search Button 6. Manual Channel Selection Knob 7. Preset Button ...
