Hyundai Elantra: Wheel. Repair procedures - Tires/Wheels - Suspension System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Wheel. Repair procedures


Hub Nut Tightening Sequence

Tighten the hub nuts as follows.

Tightening torque :
90 ~ 110N.m (9.0 ~ 11.0kgf.m, 65 ~ 80lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.
Run Out Inspection
1.
Jack up the vehicle.
2.

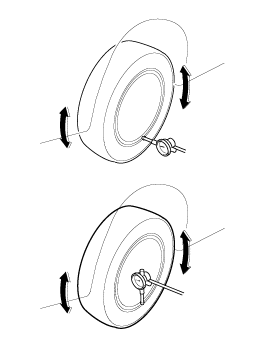

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out
Aluminum
Steel
Radial mm(in)
Below 0.3(0.012)
Below 1.0(0.039)
Axial mm(in)
Below 0.3(0.012)
Below 0.6(0.024)

3.
If measured value exceeds the standard value, replace the wheel.
