Hyundai Elantra MD/UD: Valve Body. Components and Components Location - Hydraulic System - Automatic Transaxle System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Valve Body. Components and Components Location

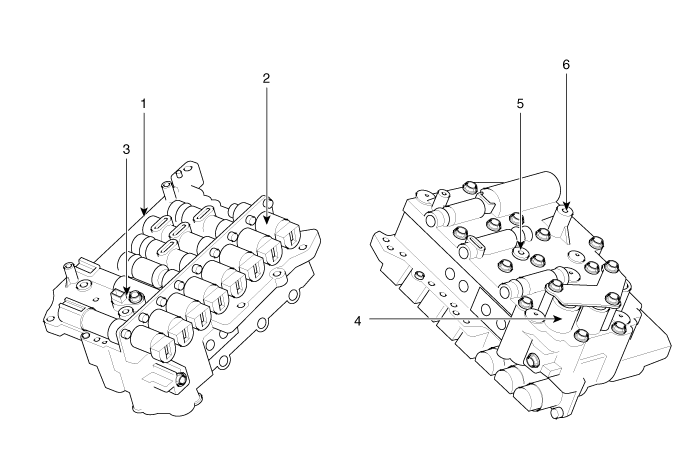

Components Location

1. Pressure Controle Valve(PCV) adjust screw
2. Solenoid valve
3. Oil temperature sensor
 4. Accumulator
5. Low & Reverse Brake(LR/B) pressure flow hole
6. Underdrive Brake(UD/B) pressure flow hole

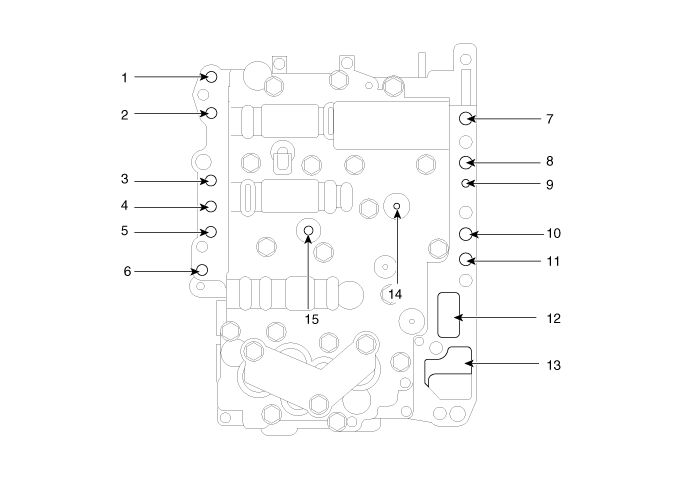

Valve Body Flow

1. To cooler
2. From cooler
3. Lubrication(rear)
4. Overdrive pressure
5. Reducing pressure (red2)
6. Reducing pressure (red1)
7. From damper pressure
8. To damper pressure
 9. Lubrication(front)
10. 35R Clutch (35R/C) pressure
11. 26 Brake (26/B) pressure
12. From oil pump
13. To oil pump
14. Underdrive pressure
15. Low & reverse pressure


Valve Body. Description and Operation
Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Specifically, these valves consist of pr ...
