Hyundai Elantra: Trunk Trim. Repair procedures - Interior - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra: Trunk Trim. Repair procedures

Replacement

•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the trunk trim.
2.
Installation is the reverse of removal.
•
Replace any damaged clips.

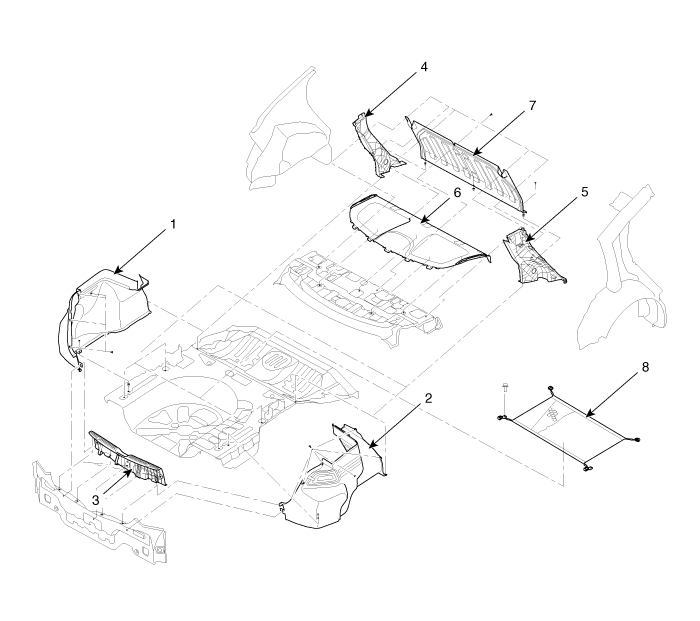

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Transverse trim
4. Rear wheel house trim [LH]
 5. Rear wheel house trim [RH]
6. Rear package tray trim
7. Partition center trim
8. Wheel luggage net
