Hyundai Elantra: Troubleshooting - Power Windows - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Troubleshooting


Troubleshooting

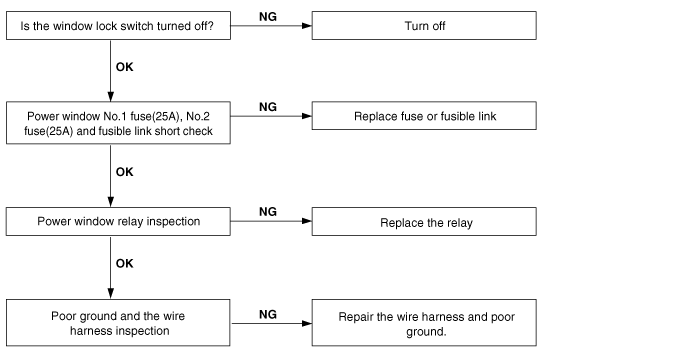

1.
No windows operate from the main switch on the driver's door.

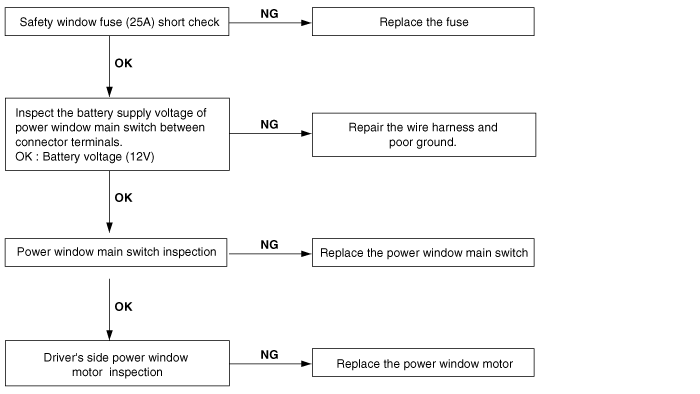

2.
Driver's side window does not operate.

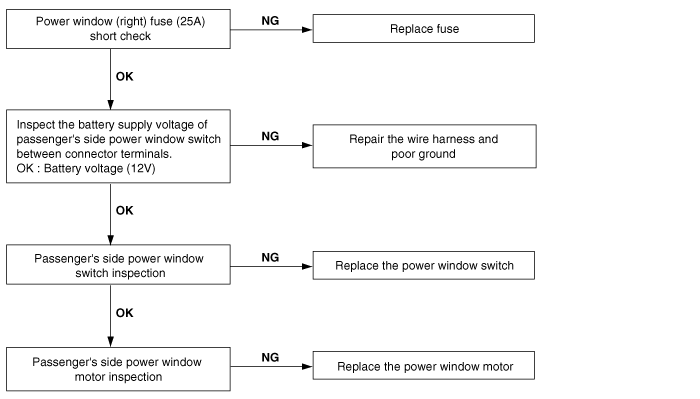

3.
Passenger's side window does not operate.


    Power Window Relay. Repair procedures
    Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body group - "Crash pad ...
