Troubleshooting

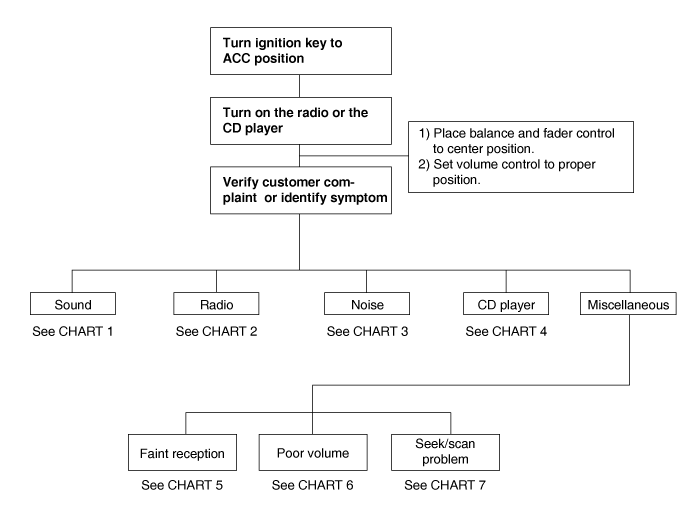

Customer Complaint Analysis Check Sheet

There are 5 areas where a problem can occur: wiring harness, the radio, the CD player, antenna and speaker. Troubleshooting enables you to confine the problem to a particular area.

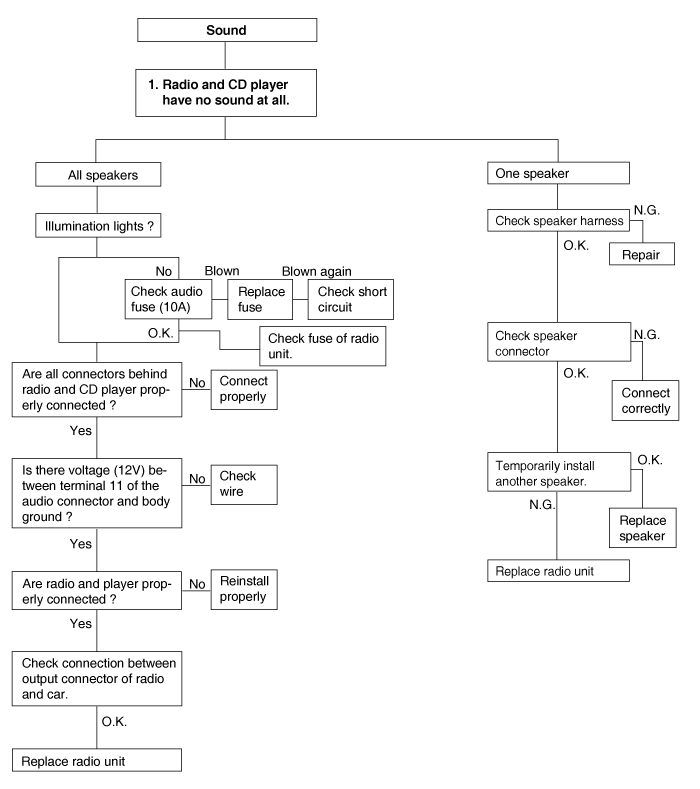

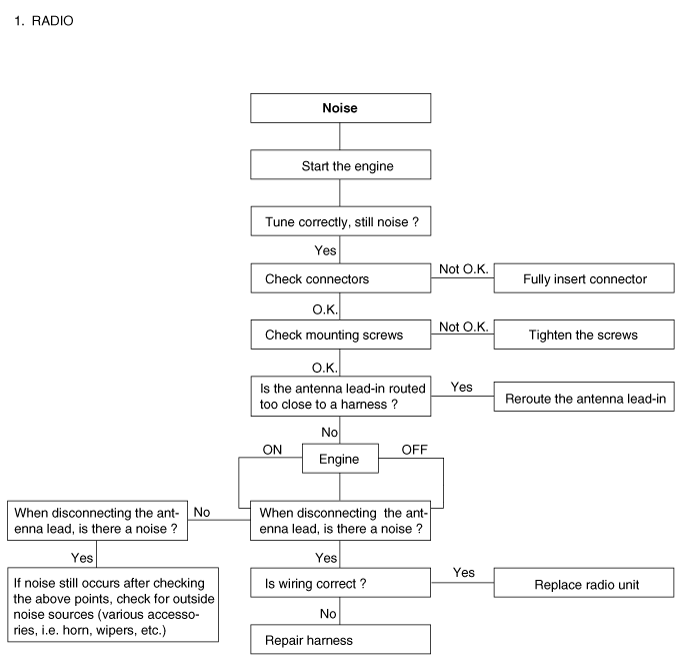

Chart 1

Chart 1

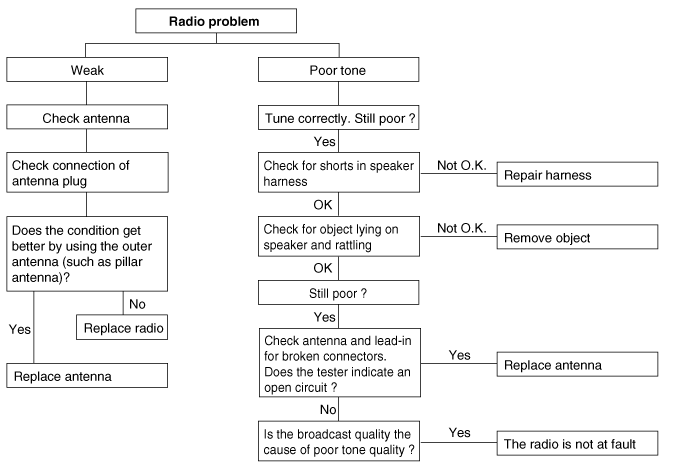

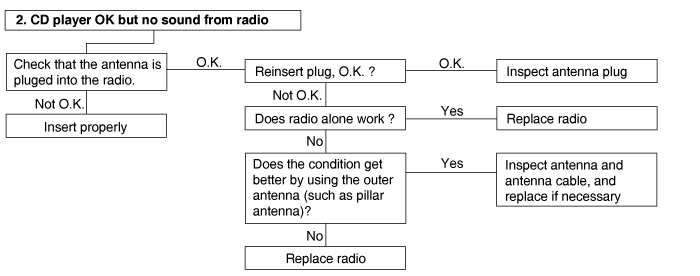

Chart 2

Chart 2

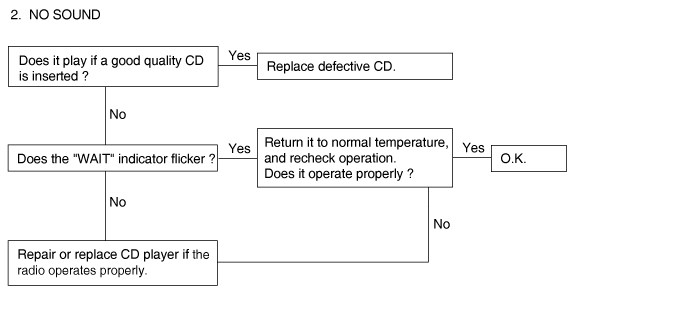

Chart 3

Chart 3

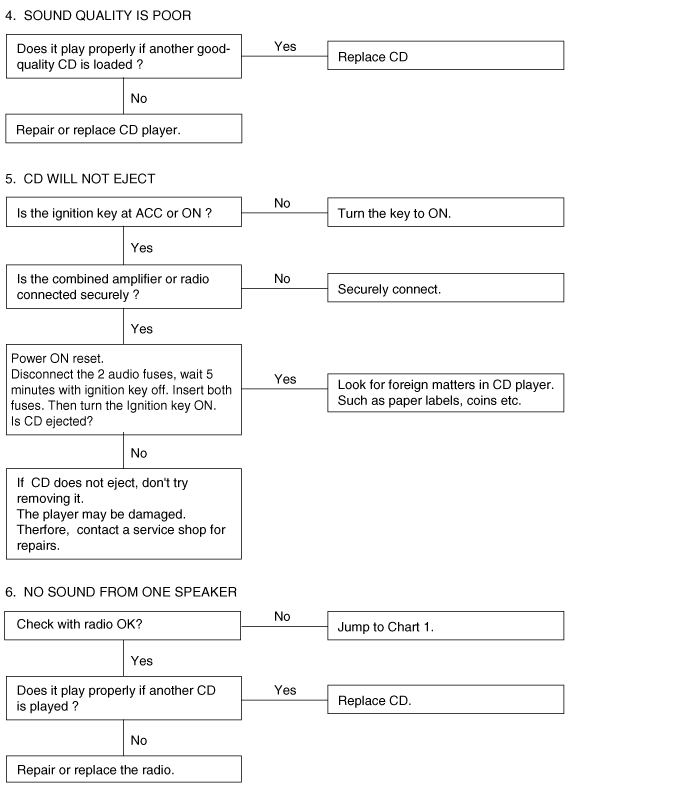

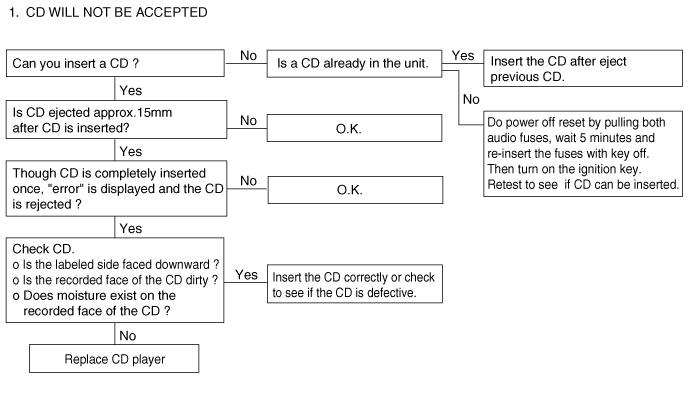

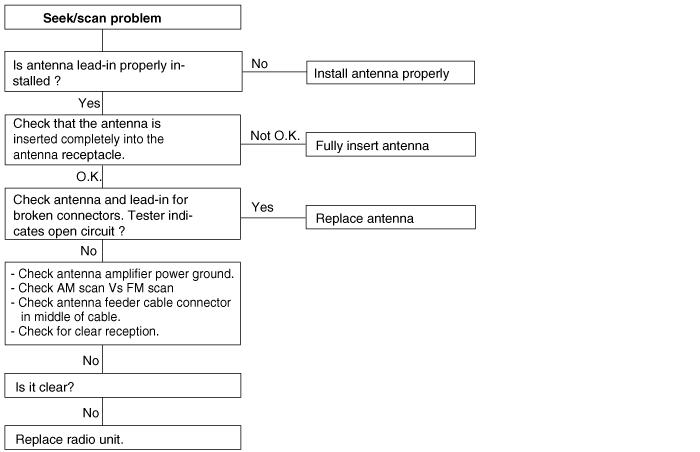

Chart 4

Chart 4

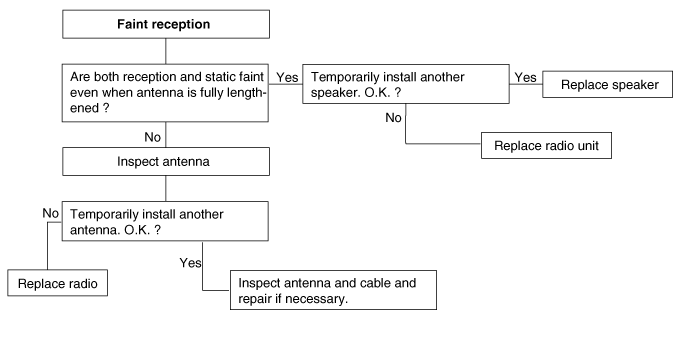

Chart 5

Chart 5

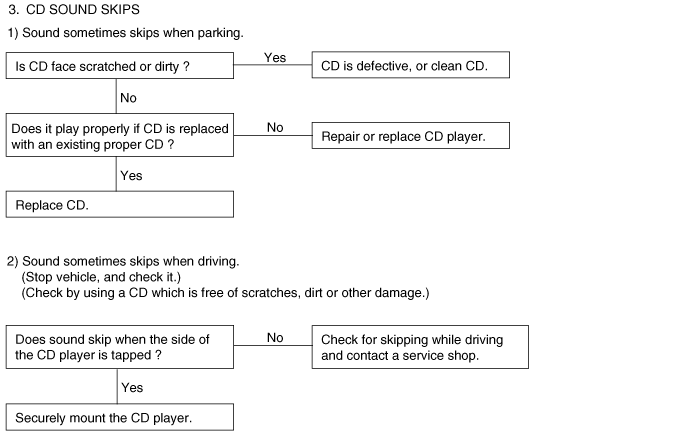

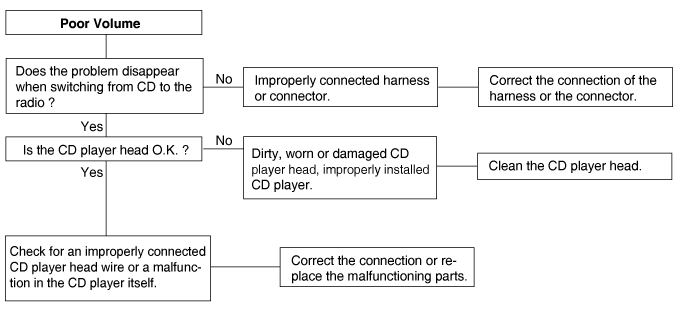

Chart 6

Chart 6

Chart 7

Chart 7


    AUX(Auxiliary) jack. Repair procedures
    Removal Multi Media Jack 1. Remove the floor console (A). (Refer to Body Gr. - "Console") 2. Disconnect the jack ...
