Troubleshooting

Vehicle inspection

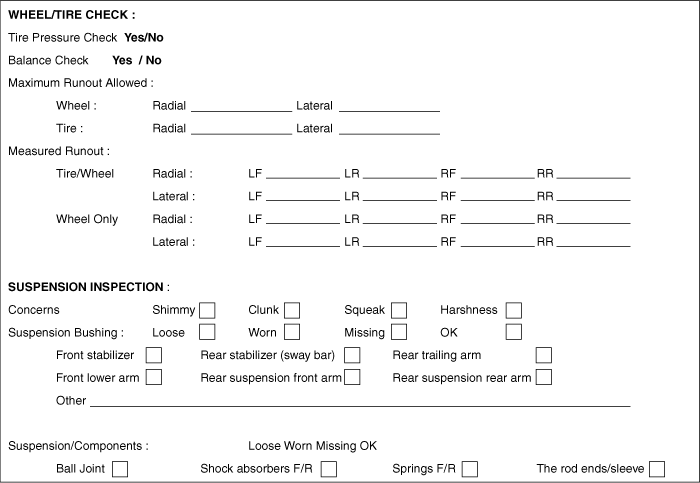

To assist the service advisor and the technician, check the suspension and wheel/tire condition with the questions listed below by filling them. It serves as a place to record information as well as data from the testing to be carried out. To begin a successful diagnosis, fill out the questions.

Wheel /tire noise, vibration and harshness concerns are directly related to vehicle speed and are not generally affected by acceleration, coasting or decelerating. Also, out-of-balance wheel and tires can vibrate at more than one speed. A vibration that is affected by the engine rpm, or is eliminated by placing the transmission in Neutral is not related to the tire and wheel. As a general rule, tire and wheel vibrations felt in the steering wheel are related to the front tire and wheel assemblies. Vibrations felt in the seat or floor are related to the rear tire and wheel assemblies. This can initially isolate a concern to the front or rear.
Careful attention must be paid to the tire and wheels. There are several symptoms that can be caused by damaged or worn tire and wheels. Perform a careful visual inspection of the tires and wheel assemblies. Spin the tires slowly and watch for signs of lateral or radial runout. Refer to the tire wear chart to determine the tire wear conditions and actions
Wheel and tire diagnosis
Rapid wear at the center
Rapid wear at both shoulders
Wear at one shoulder

Х
Center-tread down to fabric due to excessive over inflated tires
Х
Lack of rotation
Х
Excessive toe on drive wheels
Х
Heavy acceleration on drive
Х
Under-inflated tires
Х
Worn suspension components
Х
Excessive cornering speeds
Х
Lack of rotation
Х
Toe adjustment out of specification
Х
Camber out of specification
Х
Damaged strut
Х
Damaged lower arm
Partial wear
Feathered edge
Wear pattern

Х
Caused by irregular burrs on brake drums
Х
Toe adjustment out of specification
Х
Damaged or worn tie rods
Х
Damaged knuckle
Х
Excessive toe on non-drive wheels
Х
Lack of rotation
