Hyundai Elantra: Steering wheel audio control (if equipped) - Audio system - Features of your vehicle - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Steering wheel audio control (if equipped)

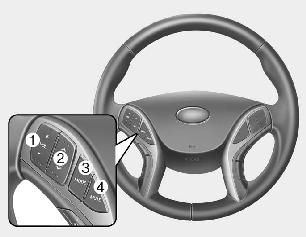

Type A

Type A

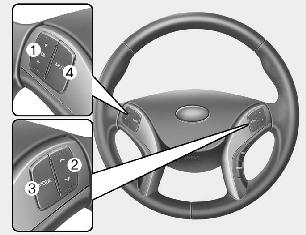

Type B

Type B

The steering wheel may incorporate audio control buttons.

Do not operate audio remote control buttons simultaneously. CAUTION

Do not operate audio remote control buttons simultaneously.

1. VOLUME (VOL+/-)

  • Push the lever upward (+) to increase the volume.
  • Push the lever downward (-) to decrease the volume.

2. PRESET/SEEK ( ) / The SEEK/PRESET button has different functions based on the system mode. For)

The SEEK/PRESET button has different functions based on the system mode. For the following functions the button should be pressed for 0.8 second or more.

RADIO mode

It will function as the AUTO SEEK select button.

CD/USB/ iPod mode

It will function as the FF/REW button.

If the SEEK/PRESET button is pressed for less than 0.8 second, it will work as follows in each mode.

RADIO mode

It will function as the PRESET STATION buttons.

CD/USB/ iPod mode

It will function as TRACK UP/DOWN button.

3. MODE

Press the button to change audio source.

- FM(1~2)➟AM➟SAT(1~3)➟CD➟USB AUX(iPod) FM...

4. MUTE (if equipped)

  • Press the button to mute the sound.
  • Press the button to turn off the microphone during a telephone call.

Detailed information for audio control buttons are described in the following pages in this section.
