Hyundai Elantra: Steering Gear box. Components and
Components Location - Electric Power Steering - Steering System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Steering Gear box. Components and Components Location

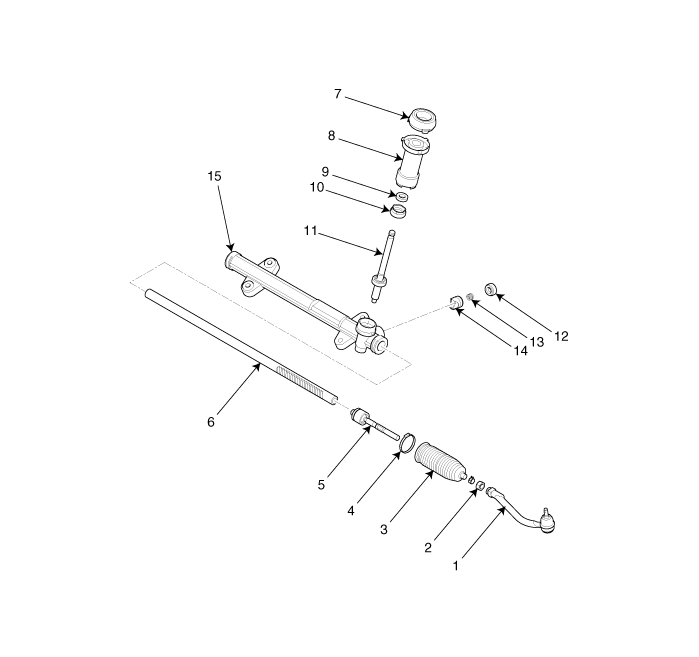

Components

1. Tie-rod end
2. Lock nut
3. Bellows clip
4. Bellows
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing


    Inspection
    1. Check the steering column for damage and deformation. 2. Check the steering column for damage and deformation. 3. ...
