Hyundai Elantra: Starter. Components and Components Location - Starting System - Engine Electrical System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Starter. Components and Components Location

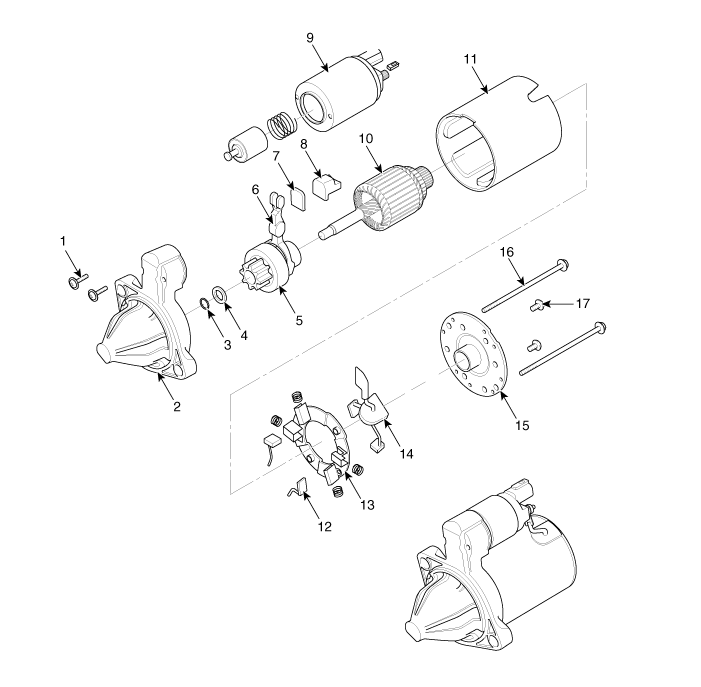

Components

1. Screw
2. Front housing
3. Stop ring
4. Stopper
5. Overunn clutch
6. Lever
7. Lever plate
8. Lever packing
9. Magnet switch assembly
10. Armature assembly
11. Yoke assembly
12. Brush (-)
13. Brush holder
14. Brush (+)
15. Rear bracket
16. Through bolt
17. Screw


    Starter. Specifications
    Specification Starter [Non-ISG type] Item Specification Rated voltage 12 V, 1.2 kW The number of pinion teeth 13 ...

    Starter. Schematic Diagrams
    Circuit Diagram ...
