Hyundai Elantra MD/UD: Smart key unit. Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Body Electrical System / Smart key System / Smart key unit. Schematic Diagrams

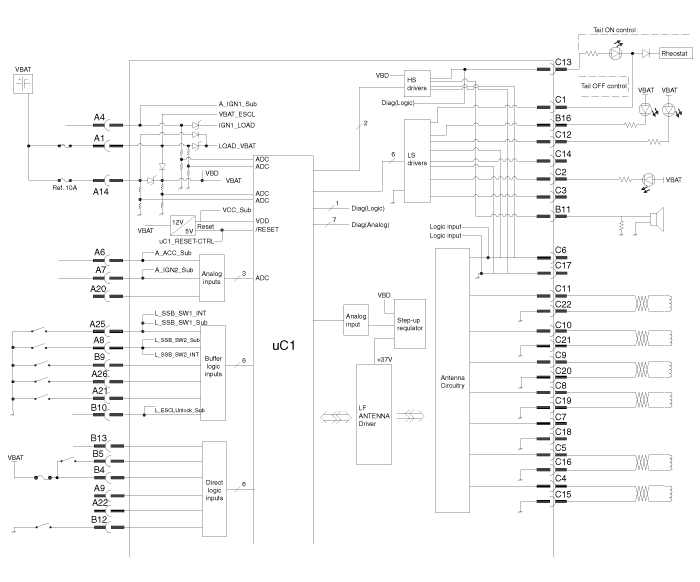

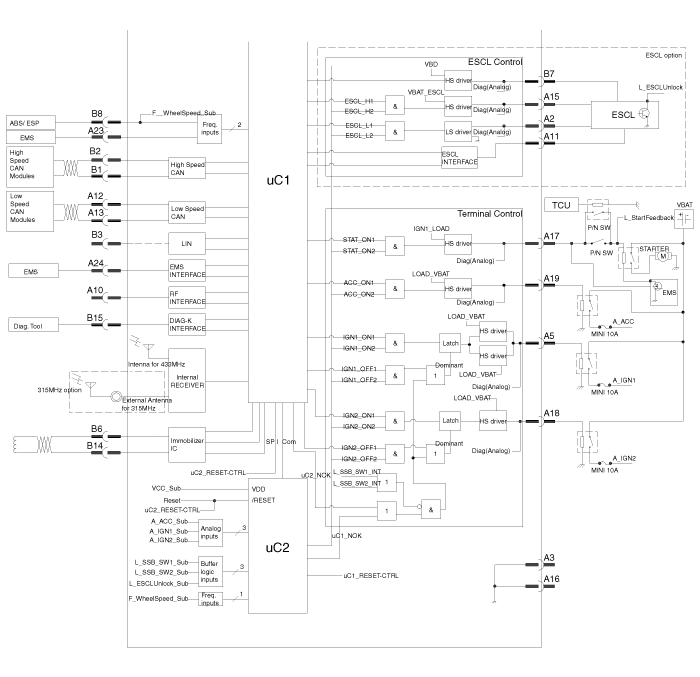

Circuit Diagram
