Hyundai Elantra: Shift lock system - Automatic transaxle operation - Automatic transaxle - Driving your vehicle - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Shift lock system


For your safety, the automatic transaxle has a shift lock system which prevents shifting the transaxle from P (Park) or N (Neutral) into R (Reverse) unless the brake pedal is depressed.

To shift the transaxle from P (Park) or N (Neutral) into R (Reverse):

1. Depress and hold the brake pedal.

2. Start the engine or turn the ignition switch to the ON position.

3. Move the shift lever.

If the brake pedal is repeatedly depressed and released with the shift lever in the P (Park) position, a chattering noise near the shift lever may be heard. This is a normal condition.

Always fully depress the brake pedal before and while shifting out of the P (Park)WARNING

Always fully depress the brake pedal before and while shifting out of the P (Park) position into another position to avoid inadvertent motion of the vehicle which could injure persons in or around the car.

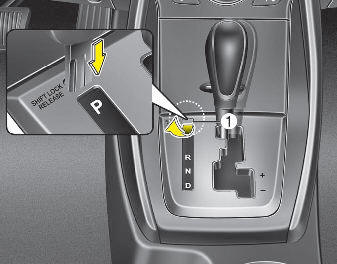

Shift-lock override

Shift-lock override

If the shift lever cannot be moved from the P (Park) or N (Neutral) position into R (Reverse) position with the brake pedal depressed, continue depressing the brake, then do the following:

1. Carefully remove the cap (1) covering the shift-lock access hole.

2. Insert a key (or screwdriver) into the access hole and press down on the key (or screwdriver).

3. Move the shift lever.

4. Have your vehicle inspected by an authorized HYUNDAI dealer immediately.
