Hyundai Elantra: Seats - Safety features of your vehicle - Hyundai Elantra MD 2010-2014 Owners manualHyundai Elantra: Seats

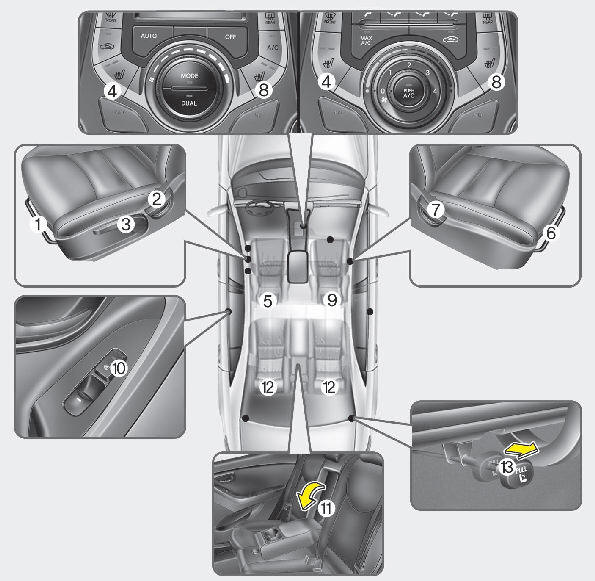

Drivers seat

Drivers seat

(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height*
(4) Seat warmer*
(5) Headrest

Front passengers seat

(6) Forward and backward
(7) Seatback angle*
(8) Seat warmer* (9) Headrest

Rear seat

(10) Seat warmer*
(11) Armrest
(12) Headrest
(13) Seatback folding knob (trunk)

*: if equipped

- Loose objectsWARNING - Loose objects

Loose objects in the drivers foot area could interfere with the operation of the foot pedals, possibly causing an accident. Do not place anything under the front seats.

- Uprighting seatWARNING - Uprighting seat

When you return the seatback to its upright position, hold the seatback and return it slowly and be sure there are no other occupants around the seat. If the seatback is returned without being held and controlled, the back of the seat could spring forward resulting in accidental injury to a person struck by the seatback.

- Driver responsibility for passengersWARNING - Driver responsibility for passengers

Riding in a vehicle with the seatback reclined could lead to serious or fatal injury in an accident. If a seat is reclined during an accident, the occupants hips may slide under the lap portion of the seat belt, applying great force to the unprotected abdomen. Serious or fatal internal injuries could result. The driver must advise the passenger to keep the seatback in an upright position whenever the vehicle is in motion.

Do not use a sitting cushion that reduces friction between the seat and passenger.WARNING

Do not use a sitting cushion that reduces friction between the seat and passenger. The passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop. Serious or fatal internal injuries could result because the seat belt can't operate normally.

- Drivers seatWARNING - Drivers seat

  • Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury, or property damage.
  • Do not allow anything to interfere with the normal position of the seatback. Storing items against a seatback or in any other way interfering with proper locking of a seatback could result in serious or fatal injury in a sudden stop or collision.
  • Always drive and ride with your seatback upright and the lap portion of the seat belt snug and low across the hips. This is the best position to protect you in case of an accident.
  • In order to avoid unnecessary and perhaps severe air bag injuries, always sit as far back as possible from the steering wheel while maintaining comfortable control of the vehicle.We recommend that your chest be at least 10 inches (250 mm) away from the steering wheel.

- Rear seatbacksWARNING - Rear seatbacks

  • The rear seatback must be securely latched. If not, passengers and objects could be thrown forward resulting in serious injury or death in the event of a sudden stop or collision.
  • No passenger should ride in the cargo area or sit or lie on folded seatbacks while the vehicle is moving. All passengers must be properly seated in seats and restrained properly while riding.
  • When resetting the seatback to the upright position, make sure it is securely latched by pushing it forward and rearwards.
  • To avoid the possibility of burns, do not remove the carpet in the cargo area. Emission control devices beneath this floor generate high temperatures.
  • Luggage and other cargo should be laid flat in the cargo area or on the folded rear seatback. If objects are large, heavy, or must be piled, they must be secured. Under no circumstances should cargo be piled higher than the seatbacks. Failure to follow these warnings could result in serious injury or death in the event of a sudden stop, collision or rollover.

After adjusting the seat, always check that it is securely locked into placeWARNING

After adjusting the seat, always check that it is securely locked into place by attempting to move the seat forward or reverse without using the lock release lever. Sudden or unexpected movement of the driver's seat could cause you to lose control of the vehicle resulting in an accident.

WARNING

  • Do not adjust the seat while wearing seat belts. Moving the seat cushion forward may cause strong pressure on the abdomen.
  • Use extreme caution so that hands or other objects are not caught in the seat mechanisms while the seat is moving.
  • Do not put a cigarette lighter on the floor or seat. When you operate the seat, gas may gush out of the lighter and cause fire.
