Hyundai Elantra: Seat belt warning - Warnings and indicators - Instrument cluster - Features of your vehicle - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Seat belt warning


The driver's seat belt warning light and chime will activate to the following

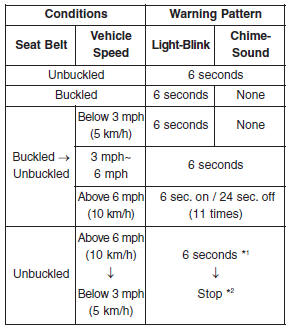

The driver's seat belt warning light and chime will activate to the following table when the ignition switch is in "ON" position.

*1 Warning pattern repeats 11 times with interval 24 seconds. If the driver's

*1 Warning pattern repeats 11 times with interval 24 seconds. If the driver's seat belt is buckled, the light will stop within 6 seconds and chime will stop immediately.

*2 The light will stop within 6 seconds and chime will stop immediately.
