Hyundai Elantra: Schematic Diagrams - Sun Roof - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Schematic Diagrams

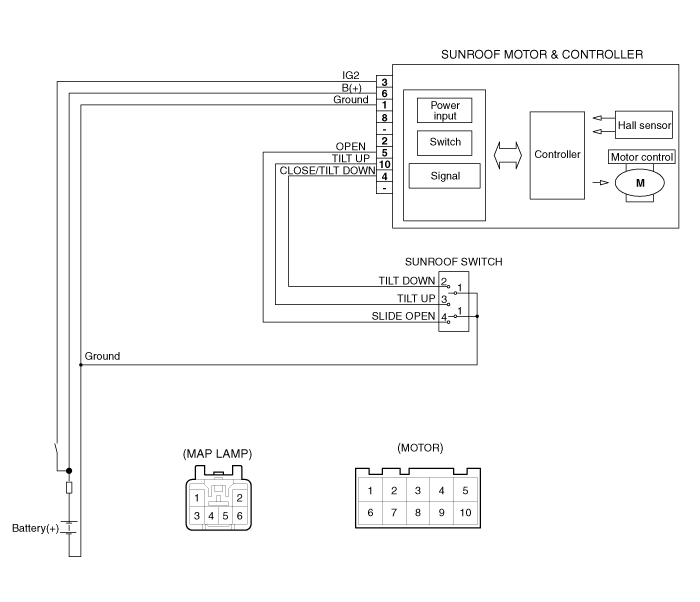

Circuit Diagram


    Components and Components Location
    Component Location 1. Sunroof 2. Sunroof switch 3. Sunroof motor & controller ...

    Sunroof Switch. Repair procedures
    Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the 2 sc ...
